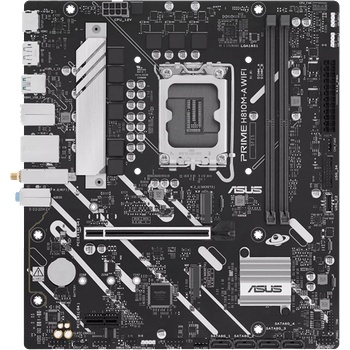

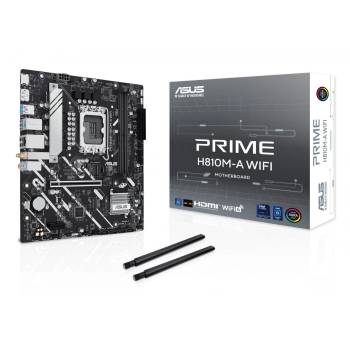

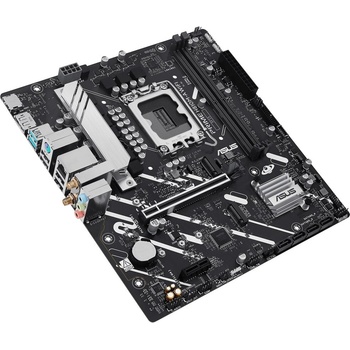

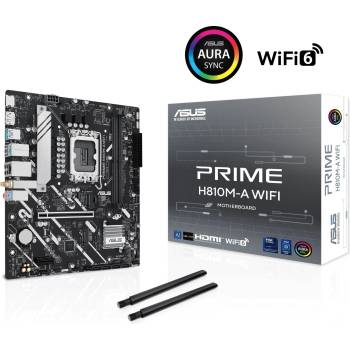

ASUS PRIME H810M-A WIFI (90MB1KJ0-M0EAY0)

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4 Снимка 5
ASUS PRIME H810M-A WIFI

USB: Rear USB (Total 6 ports);2 x USB 10Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 5Gbps connector (supports USB Type-C®)*;1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports
Manufacturer: ASUS
Wireless: Wi-Fi 6;1x1 Wi-Fi 6 (802.11ax);Supports 2.4/5GHz frequency band;Bluetooth® v5.3
Memory type: 2 x DIMM slots, max. 128GB, DDR5;Supports up to 6400MT/s, Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile II (AEMP II)
Features: ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage protection;- SafeSlot Core+;- Stainless-steel back I/O;ASUS Q-Design;- Q-DIMM;- Q-Dashboard;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- VRM heatsink design;Aura Sync;- Addressable Gen 2 headers
CPU's supported: Support Intel® Core Ultra Processors (Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® H810 Chipset
Bluetooth: 5.3
Graphics: 1 x DisplayPort;1 x HDMI port
Expansion Slots: Intel® Core Ultra Processors (Series 2);1 x PCIe 4.0 x16 slot;Intel® H810 Chipset;1 x PCIe 4.0 x1 slot
Storage: Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports;Intel® H810 Chipset;M. 2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode);4 x SATA 6Gb/s ports
I/O: 2 x USB 10Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI port;1 x Wi-Fi module;1 x Intel® 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 keyboard/mouse combo port
Connectors: Fan and Cooling Related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage Related;2 x M. 2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin Front Panel System header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers
LAN: 1 x Intel® 1Gb Ethernet port;ASUS LANGuard
BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor: micro-ATX Form Factor 24.4 cm x 22.2 cm
OS: Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)



.
