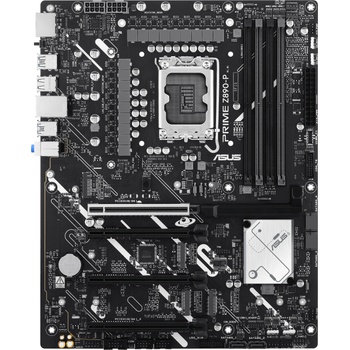

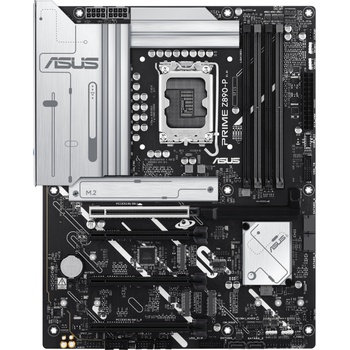

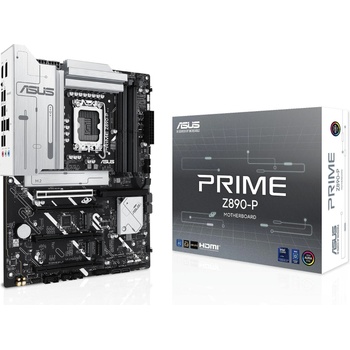

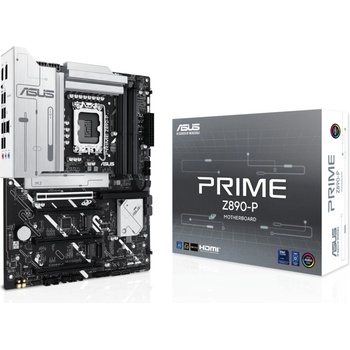

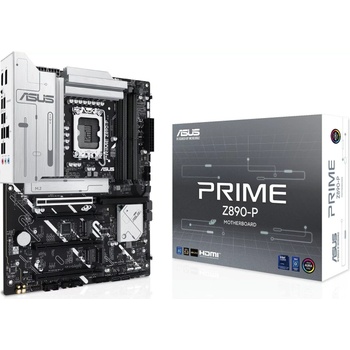

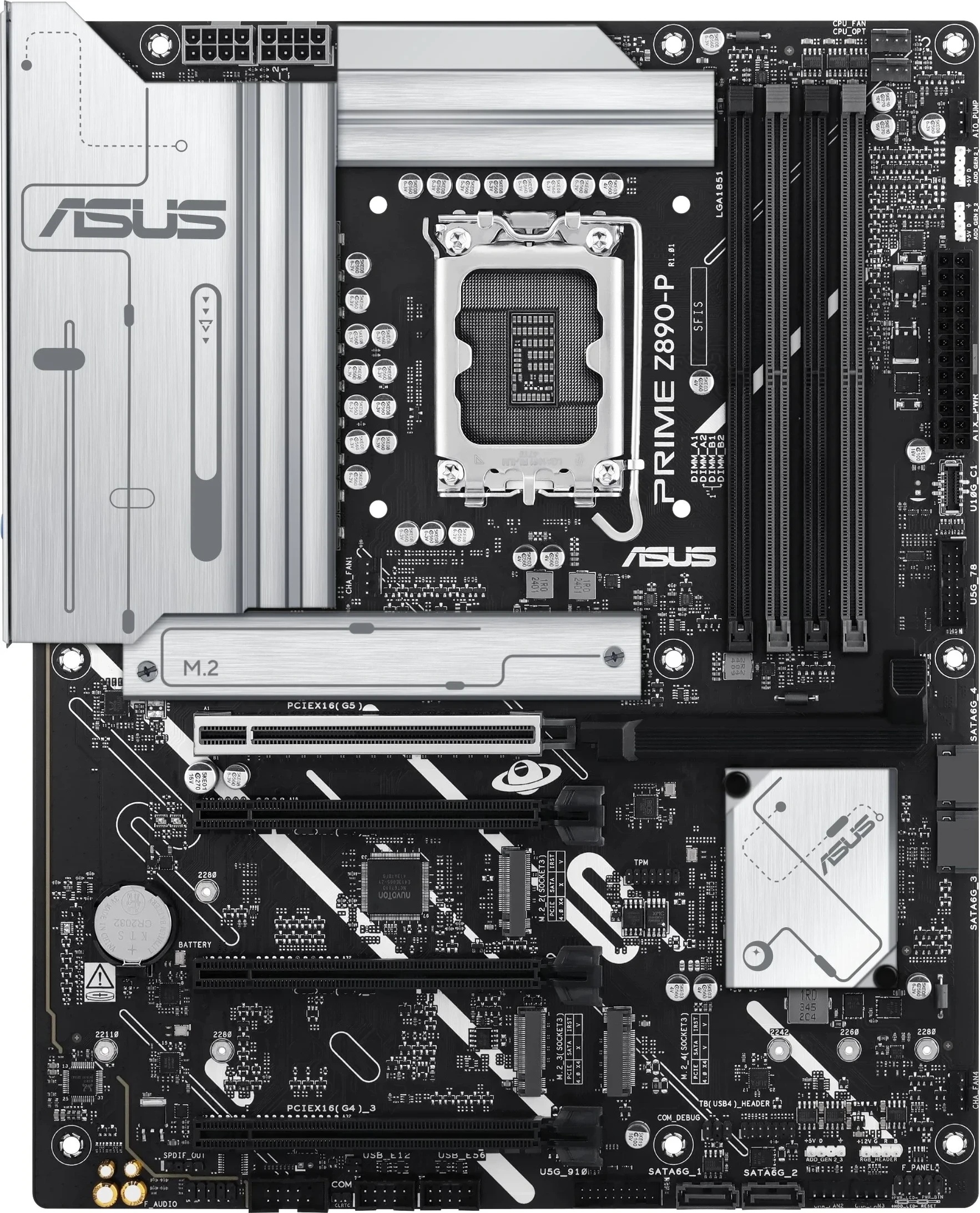

ASUS PRIME Z890-P

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4 Снимка 5
ASUS PRIME Z890-P

Manufacturer: ASUS
Memory type: 4 x DIMM slots, max. 192GB, DDR5;Support up to 8666+MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*;Dual channel memory architecture DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII);* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration;** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Features: ASUS 5X PROTECTION III;- DIGI+ VRM (- Digital power design with DrMOS);- LANGuard;- Overvoltage Protection;- SafeSlot;- Stainless-Steel Back I/O;ASUS Q-Design;- M. 2 Q-Latch;- PCIe Slot Q-Release;- Q-Dashboard;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- M. 2 heatsink;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack button;- BIOS FlashBack LED;- ProCool;- Pre-mounted I/O shield;Aura Sync;- Aura RGB header;- Addressable Gen2 headers
CPU's supported: Supports Intel® Core Ultra Processors (Series 2), LGA1851*;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® Z890 Chipset
Graphics: 1 x DisplayPort**;1 x HDMITM port***;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****;* Graphics specifications may vary between CPU types. ;** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ;*** Supports 4K@60Hz as specified in HDMI 2.1. ;**** Supports max. 4K@120Hz as specified in DisplayPort 1.4. ;***** VGA resolution support depends on processors' or graphic cards' resolution. ;****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots: Intel® Core Ultra Processors (Series 2);-1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;-2 x PCIe 4.0 x16 slots (support x4 mode);-1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage: Total supports 4 x M. 2 slots and 4 x SATA 6Gb/s ports*;Intel® Core Ultra Processors (Series 2)*;-M. 2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode);-M. 2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;-M. 2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);-M. 2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);-4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M. 2 slot from CPU only supports RAID 0/1/5.
I/O: 1 x DisplayPort;1 x HDMITM port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack button;Rear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A)**;Front USB (Total 9 ports);1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports**;* USB Type-C® power delivery output: max. 5V/3A;** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. ;** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
Connectors: Fan and Cooling related;-1 x 4-pin CPU Fan header;-1 x 4-pin CPU OPT Fan header;-1 x 4-pin AIO Pump header;-4 x 4-pin Chassis Fan headers;Power related;-1 x 24-pin Main Power connector;-2 x 8-pin +12V CPU Power connector;Storage related;-4 x M. 2 slots (Key M);-4 x SATA 6Gb/s ports;USB;-1 x USB 10Gbps connector (supports USB Type-C®);-2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;-2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;-3 x Addressable Gen2 headers;-1 x Aura RGB header;-1 x Clear CMOS header;-1 x COM Port header;-1 x Front Panel Audio header (F_AUDIO);-1 x S/PDIF Out header;-1 x SPI TPM header (14-1pin);-1 x 10-1 pin Front PanelSystem header;-1 x Thunderbolt (USB4®) header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN: 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
OS: Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Warranty: 36 Months



.
