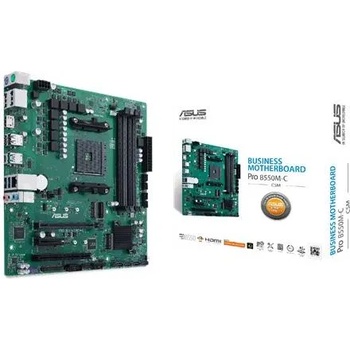

ASUS Pro B550M-C/CSM

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
ASUS PRO B550M-C/CSM

Graphics: 2 x DisplayPort; 1 x HDMI 2.1(4K@60HZ)
CPU's supported: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors *
Chipset: AMD B550
Expansion Slots: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 (x16 mode) *; AMD Ryzen 4000 G-Series Desktop Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD B550 Chipset; 1 x PCIe 3.0 x4 *1; 1 x PCI
Storage: Total supports 2 x M. 2 slot(s) and 4 x SATA 6Gb/s ports; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M. 2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; AMD RyzenTM 4000 G-Series Processors : 1 x M. 2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support; AMD B550 Chipset : 1 x M. 2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support; 4 x SATA 6Gb/s port(s), ; Support Raid 0, 1, 10
Memory type: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; 4 x DIMM, Max. 128GB, DDR4 4600(O. C)/4400(O. C)/4266(O. C. )/4133(O. C. )/4000(O. C. )/3866(O. C. )/3733(O. C. )/3600;(O. C. )/3466(O. C. )/3333(O. C. )/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *; AMD Ryzen 4000 G-Series Desktop Processors; 4 x DIMM, Max. 128GB, DDR4 4800(O. C. )/4600(O. C)/4466(O. C. )/4400(O. C)/4266(O. C. )/4133(O. C. )/4000(O. C. )/3866;(O. C. )/3733(O. C. )/3600(O. C. )/3466(O. C. )/3333(O. C. )/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.
I/O: 1 x Realtek® RTL8111H; 1 x PS/2 keyboard (purple); 1 x PS/2 mouse (green); 2 x DisplayPort; 1 x HDMI; 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®); 2 x USB 3.2 Gen 1 Type-A; 2 x USB 2.0; 3 x Audio jack(s)
Connectors: 1 x CPU Fan connector(s); 2 x Chassis Fan connector(s); 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s); 2 x M. 2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode); 1 x M. 2 with E key for Wi-Fi module; 1 x LPT header; 4 x SATA 6Gb/s connector(s); 1 x Thunderbolt header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin EATX 12V Power connectors; 1 x Front panel audio connector(s) (AAFP); 1 x SMBus header(s); 1 x System panel(s); 1 x Clear CMOS jumper(s); 1 x COM port header; 1 x Chassis intrusion header; 1 x LPC Debug header; 1 x Speaker connector
Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
LAN: Realtek RTL8111H 1Gb Ethernet
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor: mATX Form Factor;9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS: Windows® 10 64-bit
Warranty: 36 Months



.
