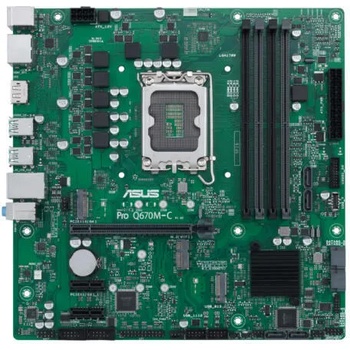

ASUS PRO Q670M-C-CSM

Доставка на този тип поръчки.

Продукта се поръчва специално за клиента , след извършено от него плащане по банка, с карта или в брой в магазина.

Срока за доставка е 6-9 дни след получено плащане на поръчката.

"Заплащане при доставка", за този продукт, не е възможна!

1700 ASUS PRO Q670M-C-CSM LGA1700 DDR5

PU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www. asus. com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Q670 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Optimem II *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www. asus. com for the Memory QVL (Qualified Vendors Lists). Graphics 2 x DisplayPort** 1 x HDMI®*** * Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® Q670 Chipset 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. Storage Supports 2 x M. 2 slots and 6 x SATA 6Gb/s ports Intel® 12th Gen Processors M. 2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® Q670 Chipset** M. 2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M. 2 slots. Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard Wireless & Bluetooth M. 2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. USB Rear USB:Total 6 ports 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI® port 3 x Audio jacks 1 x Intel® 1Gb Ethernet 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M. 2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M. 2 slot (Key E) 1 x Speaker header 1 x 10-1 System Panel header Special Features ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Boot Defender - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM 2.0 IC onboard Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) BIOS 256 Mb Flash ROM Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M. 2 SSD screw package 1 x M. 2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor microATX 24.4cm x 24.4cm
