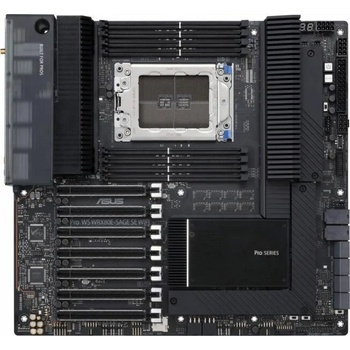

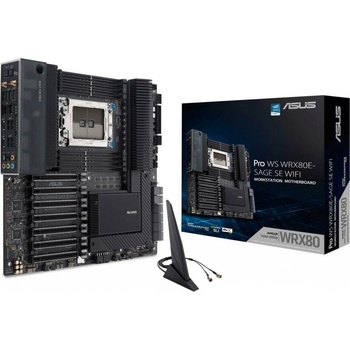

ASUS PRO WS WRX80E-SAGE SE WIFI

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4
Дънна платка ASUS PRO WS WRX80E-SAGE SE WIFI, sWRX8 socket, AMD Threadripper, E-ATX, Workstation

CPU Socket: sWRX8
Чипсет: AMD WRX80
Поддържани процесори: AMD® Ryzen Threadripper Pro Processors
Форм фактор: Extended ATX
Поддържана памет: DDR4
Максима лен капацитет RAM памет: 2048 GB
Слотове памет: 8
Честота памет: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory
Вградено аудио: Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC
Вграден LAN: Intel Dual 10 G LAN
Вграден LAN: ASUS Turbo LAN
Вграден Wi-Fi: Intel® Wi-Fi 6 AX200
Вграден Wi-Fi: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Вг аден Bluetooth: Bluetooth V5.1
Слотoве PCI-E x16: 2 x PCIe 4.0 x16 (x16 or dual x8)
Слотoве PCI-E x4: 3
Интерфей Serial ATA: 8 x SATA 6Gb/s
М2 слот: M. 2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
М2 слот: M. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
М2 слот: M. 2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
Поддръжка на RAID: Support PCIe bandwidth bifurcation for RAID on CPU function.
Поддръжка на RAID: Supports NVMe RAID configurations via M. 2 storages
Конектор захранване: 1 x 24-pin Main Power connector, x 8-pin +12V Power connector, 2 x 6-pin PCIe Graphics Card connector, 1 x 8-pin PCIe Power connector
Мулти GPU технология: Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
Свързано ст: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®), 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®), 1 x ASUS Wi-Fi Module, 2 x Intel® X550-AT2 dual 10Gb Ethernet ports, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button
USB Type-C: 2
USB 3.2: 8
Размери: 30.98cm*33.02cm
П ддържани технологии: ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X® Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Комплектът включва: 6 x SATA 6Gb/s cables, 1 x VGA cable, 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas, 1 x Hyper M. 2 X16 Gen 4 Card, 3 x M. 2 Rubber Package(s), 3 x M. 2 SSD screw package(s), 1 x Q-connector, 1 x Support DVD, 1 x User manual
Други: 256 Mb Flash ROM, UEFI AMI BIOS

ънна платка ASUS PRO WS WRX80E-SAGE SE WIFI, sWRX8 socket, AMD Threadripper, E-ATX, Workstation

AMD WRX80 Ryzen Threadripper PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M. 2 PCIe 4.0, ASMB9-iKVM, 2 x U. 2 and 16 power stages

• AMD sWRX8 socket: Ready for AMD Ryzen Threadripper PRO Series Processors
• Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M. 2 PCIe 4.0, HYPER M. 2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet
• ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
• Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
• Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security
