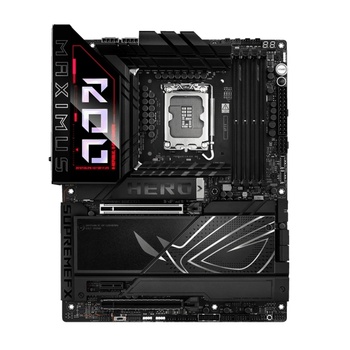

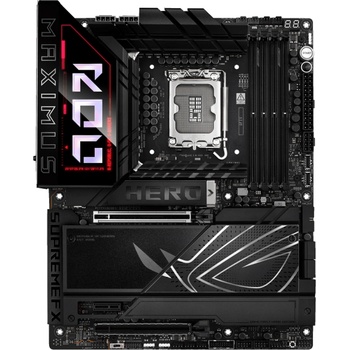

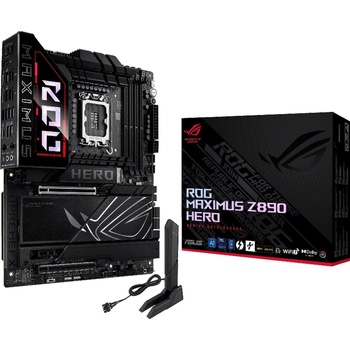

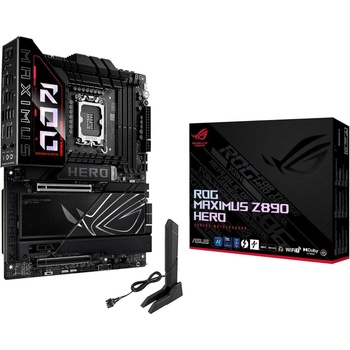

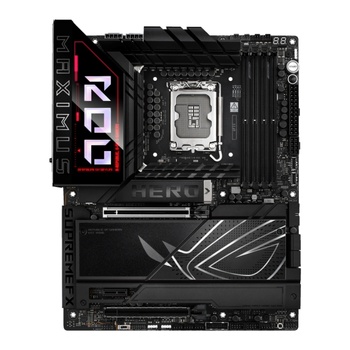

ASUS ROG MAXIMUS Z890 HERO

ASUS ROG MAXIMUS Z890 HERO LGA1851 DDR5 ATX MBASUS ROG MAXIMUS Z890 HERO LGA1851 DDR5 ATX MB:Manufacturer : ASUSManufacturer Part No : 90MB1ID0-M0EAY0GeneralProduct Type : Motherboard - ATXChipset Type : Intel Z890Processor Socket : LGA1851 SocketMax Processors Qty : 1Compatible Processors : (supports Intel Core Ultra processors (Series 2))Supported RAMMax Size : 192 GBTechnology : DDR5Bus Clock : 4400 MHz (O. C. ), 4600 MHz (O. C. )Supported RAM Integrity Check : Non-ECCRegistered or Buffered : UnbufferedFeatures : Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technologyAudioType : HD Audio (8-channel)Audio Codec : SupremeFX ALC4082 / ESS ES9219Compliant Standards : High Definition Audio, Dolby AtmosLANNetwork Interfaces : 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit EthernetExpansion / ConnectivityExpansion Slots : 1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x1
5 x M. 2 socket (2242/2260/2280 M. 2 Key M slot)
1 x M. 2 socket (2242/2260/2280/22110 M. 2 Key M slot)Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 2 x M. 2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 3 x M. 2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 1 x M. 2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x SlimSASInterfaces : 1 x LAN (2.5Gigabit Ethernet)
1 x LAN (5Gigabit Ethernet)
1 x HDMI
2 x aerial
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x SPDIF out
2 x Thunderbolt 4/DisplayPort/USB4
4 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 2
4 x USB 3.2 Gen 1Internal Interfaces : 1 x USB-C 3.2 Gen 2x2 - header
1 x USB-C 3.2 Gen 2 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x Thunderbolt 4 - headerPower Connectors : 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connectorFeaturesBIOS Type : AMIBIOS Features : UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ ModeSleep / Wake Up : Wake on LAN (WOL), wake on PMEHardware Features : Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM support, CrashFree BIOS 3, Quick Charge 4+, LANGuard, BIOS FlashBack button, Clear CMOS Button, FlexKey button, ReTry button, Start button, ASUS Extreme OC Kit, 10K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, CPU Socket lever protector, M. 2 heatsink, M. 2 heatsink backplate, M. 2 Q-Latch, M. 2 Q-Release, metal backplate, MicroFine Alloy Chokes, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Release Slim, Q-Slot, VRM heatsink design, ROG M. 2 PowerBoost, Polymo Lighting II, AI Cooling II, NPU Boost, 22+1+2+2 Phase Power Design, AI Networking II, AI Overclocking, DIY Friendly Design, chipset heatsinkMiscellaneousIncluded Accessories : ARGB RGB extension cable, DDR5 fan holder, thermal pad for M. 2 SSD, ASUS Wi-Fi Q-antenna, Q-Connector, M. 2 Q-Latch, 3 x M. 2 Q-Slide, ROG stickers, 6 x M. 2 backplate rubber package, ROG thank you card, ROG bottle opener, USB driveCables Included : 4 x SATA Express cableSoftware Included : ROG CPU-Z, AIDA64 Extreme (1 year licence), Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, Adobe Creative Cloud (free trial), ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, HWiNFO, ROG GameFirst Utility, Thunderbolt Share, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)Compliant Standards : DisplayPort 2.1Width : 30.5 cmDepth : 24.4 cmTechnical data provided by third party. We assume no liability for errors within these data.
