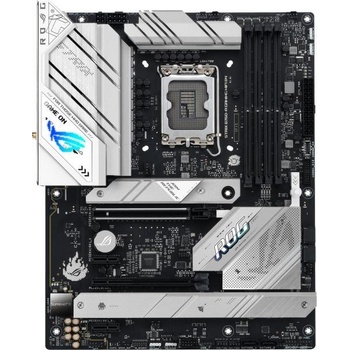

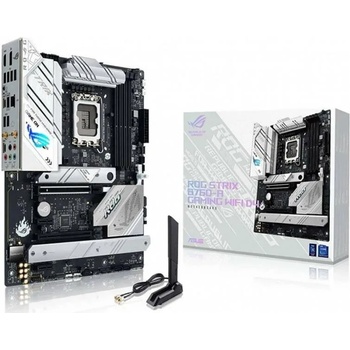

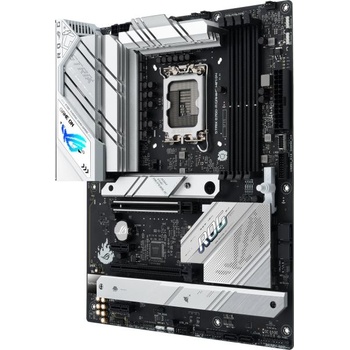

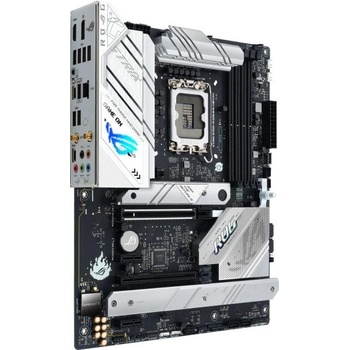

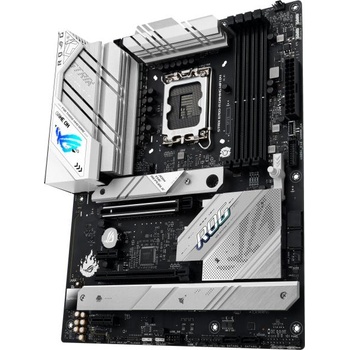

ASUS ROG STRIX B760-A Gaming WIFI

ASUS ROG STRIX B760-A GAMING WIFI LGA 1700 4DDR5 ATX 4xSATA MB 1x PCIe 5.0 x16 3xM. 2ASUS ROG STRIX B760-A GAMING WIFI LGA 1700 4DDR5 ATX 4xSATA MB 1x PCIe 5.0 x16 3xM. 2Manufacturer ASUSManufacturer Part No 90MB1EP0-M1EAY0Marketing DescriptionJust like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps. Product Features

• All-round performance
  The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast.
• Leading connectivity
  The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.
• Play in style
  Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A shine in every build.
• Software utilities
  A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.

GeneralProduct TypeMotherboard - ATXChipset TypeIntel B760Processor SocketLGA1700 SocketMax Processors Qty1Compatible Processors(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)Supported RAMMax Size192 GBTechnologyDDR5Bus Clock5800 MHz (O. C. ), 6000 MHz (O. C. ), 4800 MHz, 6200 MHz (O. C. ), 6400 MHz (O. C. ), 6600 MHz (O. C. ), 7000 MHz (O. C. ), 6800 MHz (O. C. ), 7200 MHz (O. C. ), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O. C. ), 7600 MHz (O. C. ), 7800 MHz (O. C. )Supported RAM Integrity CheckNon-ECC, on-die ECCRegistered or BufferedUnbufferedFeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)AudioTypeHD Audio (8-channel)Audio CodecSupremeFX (ALC4080)Compliant StandardsHigh Definition Audio, DTS Sound UnboundLANNetwork Interfaces2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)Expansion / ConnectivityExpansion Slots1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
2 x M. 2 socket (2242/2260/2280 M. 2 Key M slot)
1 x M. 2 socket (2242/2260/2280/22110 M. 2 Key M slot)Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 3 x M. 2RAID FeaturesIntel Rapid Storage TechnologyInterfaces1 x HDMI
1 x DisplayPort
2 x aerial
1 x USB-C 3.2 Gen2x2
1 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x USB-C 3.2 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jackInternal Interfaces1 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
3 x USB 2.0 - header
1 x SPDIF - header
1 x audio - header
1 x Thunderbolt - headerPower Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connectorFeaturesBIOS TypeAMIBIOS FeaturesASUS EZ Flash 3, ASUS UEFI BIOS EZ ModeSleep / Wake UpWake on LAN (WOL), wake on PMEHardware FeaturesASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, LANGuard, 6 Layer PCB, Lighting Control, ASUS SafeSlot, ASUS SafeDIMM, M. 2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, 12+1 Phase Power Design, M. 2 Q-Latch, 5K Black Metallic Capacitors, PCIe Slot Q-Release, CPU Socket lever protector, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LEDMiscellaneousIncluded AccessoriesCable ties, ROG thank you card, thermal pad for M. 2 SSD, ASUS Wi-Fi moving aerial, 1 x M. 2 rubber package, M. 2 Q-Latch, ROG stickersCables Included2 x Serial ATA cableSoftware IncludedROG CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), MemTest86, ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Radar III, ASUS Fan Xpert 4, Norton 360 for Gamers, Adobe Creative Cloud (free trial)Width30.5 cmDepth24.4 cmTechnical data provided by third party. We assume no liability for errors within these data.
