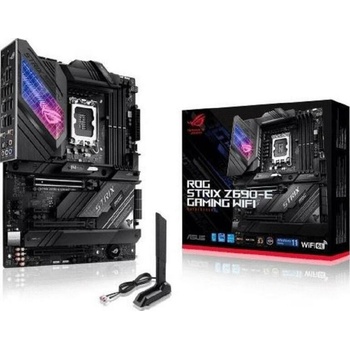

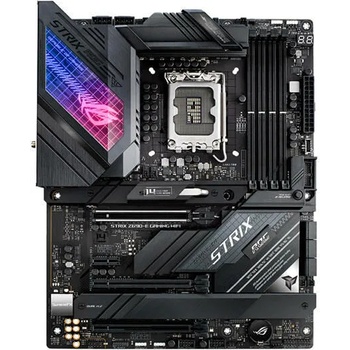

ASUS ROG STRIX Z690-E GAMING WIFI

Дънна платка ASUS ROG STRIX Z690-E GAMING WIFI, LGA 1700, DDR5, ATX, Wi-Fi 6E, AURA Sync RGB
ROG STRIX Z690-E GAMING WIFI
Технически детайли

CPU Socket:1700
Чипсет:Intel Z690
Поддържани процесори:Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0, Supports Intel® 10 nm CPU, Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors
Форм фактор:ATX
Поддържана памет:DDR5
Максимален капацитет RAM памет:128 GB
Слотове памет:4
Честота памет:6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
Поддръжка на Dualchannel:Да
Вградено аудио:SupremeFX Shielding Technology, Supports up to 32-Bit/384 kHz playback, ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, ALC4080 + Savitech SV3H712 AMP, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Вграден LAN:ASUS LANGuard, 1 x Intel® 2.5Gb Ethernet
Вграден Wi-Fi:Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band
Вграден Bluetooth:Bluetooth v5.2 hardware ready
Слотoве PCI-E x16:1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode or x4/x4 mode for ROG HYPER M. 2 CARD)
Слотoве PCI-E x1:1
Интерфейс Serial ATA:6 x SATA 6Gb/s
М2 слот:Hyper M. 2_1 slot (Key M) via Hyper M. 2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode), Hyper M. 2_2 slot (Key M) via Hyper M. 2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode), M. 2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M. 2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)
Поддръжка на RAID:NVMe RAID 0/1/5, SATA RAID 0/1/5/10
Конектор захранване:1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector
Видео слот:PCI Express
USB Type-C:2
USB 3.2:2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A
USB 2.0:4
Размери:30.5 cm x 24.4 cm
Поддържани технологии:Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M. 2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M. 2 heatsink backplate

- M. 2 heatsink

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

- Clear CMOS button

- CPU Socket lever protector

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- AURA RGB header

- Addressable Gen 2 RGB headers

ASUS HYDRANODE

- 1 x Chassis fan support* (CHA_FAN1P)

* Visit ASUS Website for the latest compatibility list.

TPM header, ROG Exclusive Software

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

AI Suite 3

- 5-Way Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Turbo app

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86
Комплектът включва:Cables

4 x SATA 6Gb/s cables

ROG HYPER M. 2 CARD

1 x ROG HYPER M. 2 CARD

Miscellaneous

1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

1 x M. 2 Q-Latch package

1 x M. 2 Q-Latch package for M. 2 backplate

1 x M. 2 Rubber Packages

2 x M. 2 Screw Packages

1 x ROG Graphics card holder

1 x ROG key chain

1 x cable tie

1 x ROG STRIX stickers

1 x ROG STRIX thank you card

Installation Media

1 x Support DVD

Documentation

1 x User manual
Други:256 Mb Flash ROM, UEFI AMI BIOS
