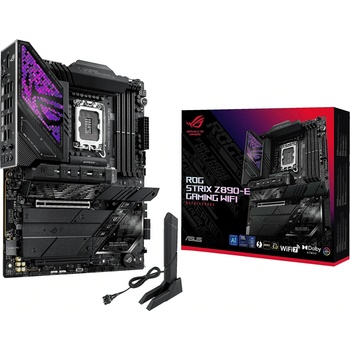

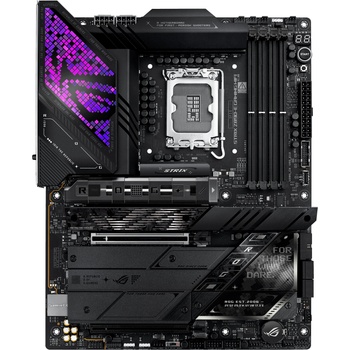

ASUS ROG STRIX Z890-E GAMING WIFI

ASUS ROG STRIX Z890-E GAMING WIFI LGA1851 DDR5 ATX MBASUS ROG STRIX Z890-E GAMING WIFI LGA1851 DDR5 ATX MB:Manufacturer : ASUSManufacturer Part No : 90MB1IM0-M0EAY0Marketing DescriptionThe ASUS ROG STRIX Z890-E GAMING WIFI motherboard offers a robust platform for high-performance computing, designed for gamers and enthusiasts. With support for Intel Core Ultra processors and DDR5 memory technology, this motherboard ensures rapid data processing and efficient multitasking. Equipped with advanced cooling features and a DIY-friendly design, it enables easy setup and optimal performance while maintaining system temperature. Product Features

• High Performance Audio
  The motherboard features a SupremeFX (ALC4080) sound card that provides high definition audio with 8-channel support and Dolby Atmos compliance, ensuring an immersive audio experience for gaming and multimedia.
• Versatile Expansion Options
  With a variety of expansion slots including PCIe 4.0 and 5.0 x16, along with multiple M. 2 slots, this motherboard supports a wide range of graphics cards and storage solutions.
• Enhanced Network Connectivity
  The onboard networking supports 5 Gigabit Ethernet and Wi-Fi 7 technologies, providing robust and high-speed Internet connections for online gaming and streaming.

GeneralProduct Type : Motherboard - ATXChipset Type : Intel Z890Processor Socket : LGA1851 SocketMax Processors Qty : 1Compatible Processors : (supports Intel Core Ultra processors (Series 2))Supported RAMMax Size : 192 GBTechnology : DDR5Bus Clock : 4400 MHz (O. C. ), 4600 MHz (O. C. )Supported RAM Integrity Check : Non-ECC, on-die ECCRegistered or Buffered : UnbufferedFeatures : Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technologyAudioType : HD Audio (8-channel)Audio Codec : SupremeFX (ALC4080)Compliant Standards : High Definition Audio, Dolby AtmosLANNetwork Interfaces : 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4Expansion / ConnectivityExpansion Slots : 1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x M. 2 socket (2242/2260/2280/22110 M. 2 Key M slot)
3 x M. 2 socket (2242/2260/2280 M. 2 Key M slot)
3 x M. 2 socket (2280 M. 2 slot)Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 2 x M. 2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 3 x M. 2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 1 x M. 2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M. 2 - RAID 0 / RAID 1 / RAID 10 / RAID 5Interfaces : 2 x Thunderbolt 4/DisplayPort/USB4
7 x USB 3.2 Gen 2
2 x USB-C 3.2 Gen 2
3 x USB 3.2 Gen 1
1 x HDMI
1 x LAN (5Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x microphone - mini-jack
2 x aerial
1 x DisplayPort
1 x SPDIF outInternal Interfaces : 1 x USB-C 3.2 Gen 2x2 - header
4 x USB 3.2 Gen 1 - header
6 x USB 2.0 - header
1 x audio - header
1 x Thunderbolt 4 - headerPower Connectors : 24-pin main power connector, 2 x 8-pin ATX12V connectorsFeaturesBIOS Type : AMIBIOS Features : UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ ModeSleep / Wake Up : Wake on LAN (WOL), wake on PMEHardware Features : Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, CUDIMM support, DIY Friendly Design, AI Cooling II, VRM heatsink design, M. 2 heatsink, M. 2 heatsink backplate, LANGuard, BIOS FlashBack button, Clear CMOS Button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, ASUS SafeSlot, M. 2 Q-Latch, M. 2 Q-Release, M. 2 Q-Slide, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, BIOS FlashBack LED, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Slot, CrashFree BIOS 3, Preboot eXecution Environment (PXE), AI Overclocking, AI Networking II, NPU Boost, 18+1+2+2 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) III, Polymo Lighting, 8 Layer PCBMiscellaneousIncluded Accessories : Thermal pad for M. 2 SSD, 2 x M. 2 Q-Slides, 7 x M. 2 rubbers, ASUS Wi-Fi Q-antenna, cable ties, M. 2 Q-Latch, ROG key chain, ROG Strix stickerCables Included : 2 x SATA Express cableSoftware Included : Adobe Creative Cloud (free trial), AIDA64 Extreme (60 days trial), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60 days trial), ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)Compliant Standards : DisplayPort 1.4Width : 30.5 cmDepth : 24.4 cmTechnical data provided by third party. We assume no liability for errors within these data.
