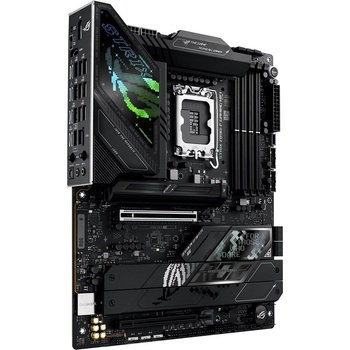

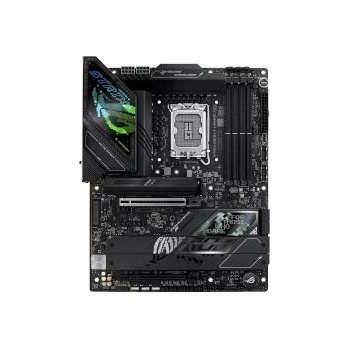

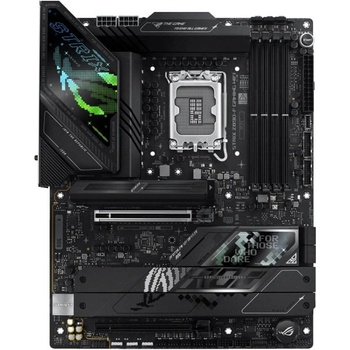

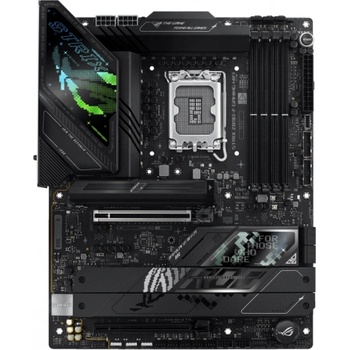

ASUS ROG STRIX Z890-F GAMING WIFI

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4 Снимка 5
ASUS ROG STRIX Z890-F GAM WIFI

USB: Rear USB (Total 14 ports);2 x Thunderbolt 4 (2 x USB Type-C®);6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports;Front USB (Total 9 ports);1 x USB 20Gbps connector (1 x USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
Manufacturer: ASUS
Wireless: Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4
Memory type: 4 x DIMM slots, max. 256GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture ;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM FlexDIMM Fit;ASUS Enhanced Memory Profile III (AEMP III)
Features: Extreme Engine Digi+;- 5K Black Metallic Capacitors ;ASUS Q-Design ;- M. 2 Q-Latch;- M. 2 Q-Release;- M. 2 Q-Slide;- PCIe Slot Q-Release Slim (with PCIe SafeSlot);- Q-Antenna;- Q-Dashboard;- Q-DIMM;- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]);- Q-Slot;ASUS Thermal Solution;- M. 2 heatsinks;- M. 2 heatsink backplate;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack button;- BIOS FlashBack LED;- Clear CMOS button;- ProCool II;- Pre-mounted I/O shield;- SafeSlot;- SafeDIMM;Aura Sync;- Addressable Gen2 headers
CPU's supported: Intel® Socket LGA1851 for Intel® Core Ultra Processors(Series 2);Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® Z890 Chipset
Bluetooth: 5.4
Graphics: 1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
Expansion Slots: Intel® Core Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes);Intel® Z890 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage: Supports 5 x M. 2 slots and 4 x SATA 6Gb/s ports;Intel® Core Ultra Processors(Series 2);M. 2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);M. 2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;M. 2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M. 2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);M. 2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M. 2 slot from CPU only support RAID 0/1/5
I/O: 2 x Thunderbolt 4 (2 x USB Type-C®);6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;2 x Gold-plated audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack button ;1 x Clear CMOS button
Connectors: Fan and Cooling related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;5 x 4-pin Chassis Fan headers;Power related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage related ;5 x M. 2 slots (Key M) ;4 x SATA 6Gb/s ports;USB ;1 x USB 20Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support additional 4 USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Chassis Intrusion header;1 x CPU Over voltage jumper;1 x Front Panel Audio header (F_AUDIO);1 x Start button;1 x 10-1 pin Front System Panel header;1 x Thermal Sensor header;1 x Thunderbolt (USB4®) header
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel;Audio Features;- SupremeFX Shielding Technology;- Savitech SV3H712 AMP ;- Gold-plated audio jacks- Rear optical S/PDIF out port ;- Premium audio capacitors;- Audio cover
LAN: 1 x Intel® 2.5Gb Ethernet;ASUS LANGuard
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor;30.5 cm x 24.4 cm
OS: Windows® 11 (22H2 & later)



.
MAIN BOARD
Mainboard
