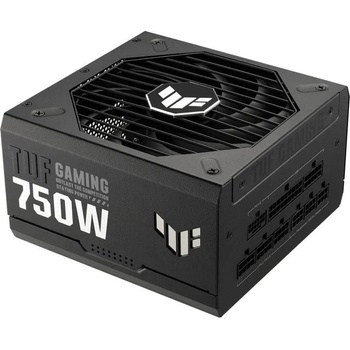

ASUS TUF Gaming 750G 80 PLUS Gold (90YE00S3-B0NA00)

The TUF Gaming 750W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.


• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.


• A protective PCB coating protects against moisture, dust, and extreme temperatures.


• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.


• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.


• Fully modular etched cables keep your rig neat and tidy.



Built For The Long Haul

The ASUS TUF Gaming 750W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.



TUF Components

Top marks

With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 750W Gold empowers you to build in confidence.



Dual Ball Fan Bearings

2x longer lifespan

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.



Protective PCB Coating

All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.



80 Plus Gold Certification

Heart of gold

The TUF Gaming 750W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS ® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.



ATX 3.0 Compatible

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.



Specifications:

Intel Form Factor

ATX12V

ATX 3.0

Yes

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A25A62A 0.8A 3A

Combined Load

130W 130W 744W 9.6W 15W

Total Output

750W

Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1

PCI-E 8-pin x 3

SATA x 5

PERIPHERAL x 4

Weight

2.38kg (single PSU)

0dB Fan Button

No
