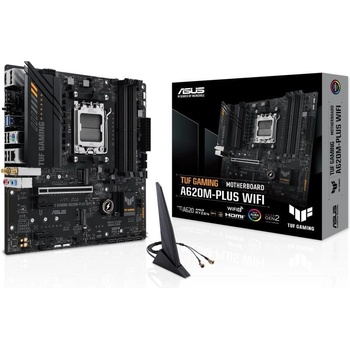

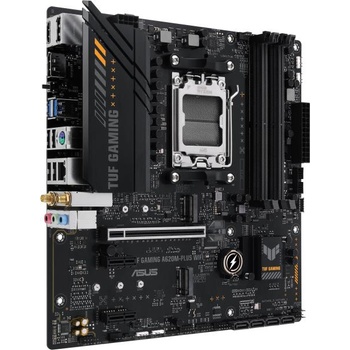

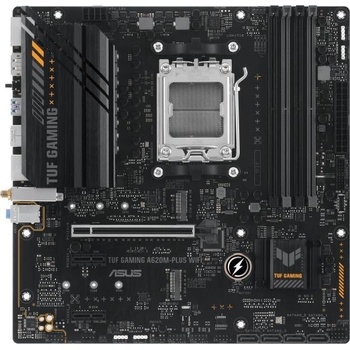

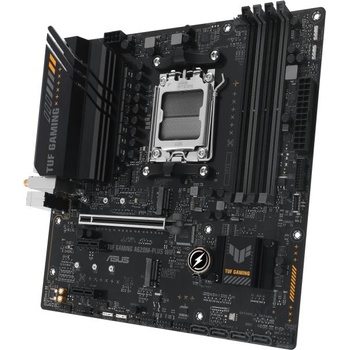

ASUS TUF Gaming A620M-PLUS WIFI

Технически детайли

USB:Rear USB (Total 6 ports);2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®);1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A
Manufacturer:ASUS
Wireless:Wi-Fi 6;1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax);Supports 2.4/5GHz frequency band
Memory type:4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles for Overclocking (EXPO);OptiMem II
Features:ASUS TUF PROTECTION;- DIGI+ VRM;- ESD Guards;- TUF LANGuard;- Overvoltage Protection;- SafeSlot Core+;- Stainless-Steel Back I/O;ASUS Q-Design;- M. 2 Q-Latch;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack button;- BIOS FlashBack LED;Aura Sync;- Aura RGB header;- Addressable Gen 2 headers;Software Features;ASUS Exclusive Software;Armoury Crate;- Aura Creator;- Aura Sync;- Fan Xpert 2+;- Power Saving;- Two-Way AI Noise Cancellation;AI Suite 3;- TurboV EVO;- DIGI+ VRM;- PC Cleaner;TUF GAMING CPU-Z;MyASUS;Norton 360 for Gamers (60 Days Free Trial);WinRAR;UEFI BIOS;ASUS EZ DIY;- ASUS CrashFree BIOS 3;- ASUS EZ Flash 3;- ASUS UEFI BIOS EZ Mode
CPU's supported:AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors;AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset:AMD A620 Chipset
Bluetooth:Bluetooth® v5.3
Graphics:2 x DisplayPort;1 x HDMI port
Expansion Slots:AMD Ryzen 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD A620 Chipset;2 x PCIe 3.0 x1 slots
Storage:Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen 9000 & 7000 Series Desktop Processors;M. 2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode);M. 2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode);AMD Ryzen 8000 Series Desktop Processors;M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M. 2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4/x2 mode);AMD A620 Chipset;4 x SATA 6Gb/s ports

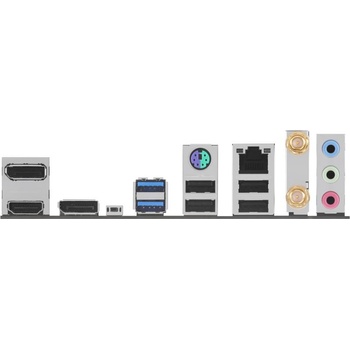

I/O:2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);2 x DisplayPort;1 x HDMI port;1 x Wi-Fi Module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack button;1 x PS/2 Keyboard/Mouse combo port
Connectors:Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M. 2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® );1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x Speaker header;1 x 10-1 pin System Panel header
Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN:1 x Realtek 2.5Gb Ethernet;TUF LANGuard
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
Form Factor:Micro-ATX Form Factor;24.4 cm x 24.4 cm
OS:Windows® 11, Windows® 10 64-bit
