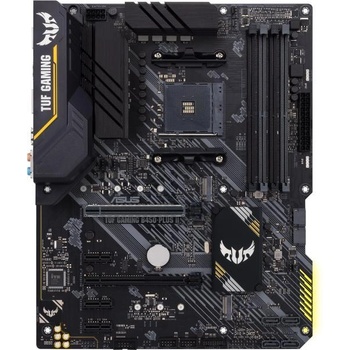

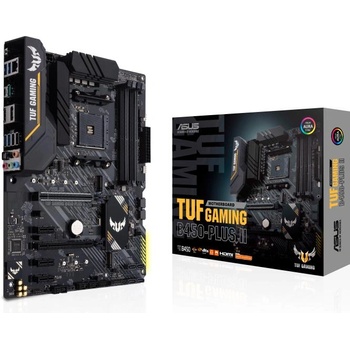

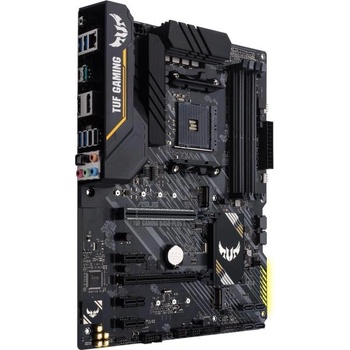

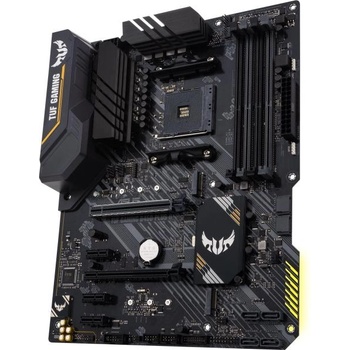

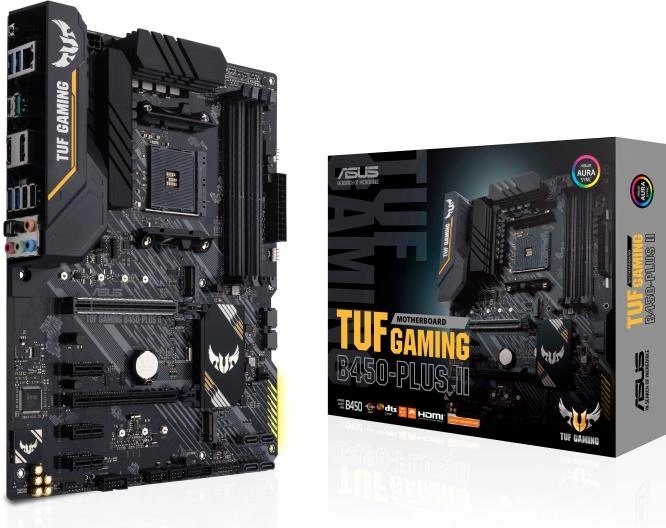

ASUS TUF Gaming B450-PLUS II

. hoverTable
width:100%;
border-collapse:collapse;

. hoverTable td
font-family: Verdana, sans-serif;
font-size:14px;
padding:14px; border:#ffffff 1px solid;

/* Define the default color for all the table rows */
. hoverTable tr
background: #ffffff;
border-bottom: 1px solid #d9d9d9;

/* Define the hover highlight color for the table row */
. hoverTable tr:hover
background-color: #e6e6e6;

Audio
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *4; Audio Feature : - Exclusive DTS Custom for GAMING Headsets. ; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Chipset
AMD B450

Connectors
1 x CPU Fan connector(s) (1 x 4 -pin); 3 x Chassis Fan connector(s) (3 x 4 -pin); 1 x AIO_PUMP connector (1 x 4 -pin); 2 x Aura RGB Strip Header; 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x M. 2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode); 1 x SPI TPM header; 6 x SATA 6Gb/s connector(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x System panel(s); 1 x Clear CMOS jumper(s); 1 x COM port header

CPU's supported
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors

Expansion Slots
3rd/2nd/1st Gen AMD Ryzen Processors; 1 x PCIe 3.0/2.0 x16 (x16 mode); 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode); AMD Athlon with Radeon Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (x4 mode); AMD B450 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1

Form Factor
ATX Form Factor, 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Graphics
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; 1 x DisplayPort 1.2; 1 x HDMI 2.0b

I/O

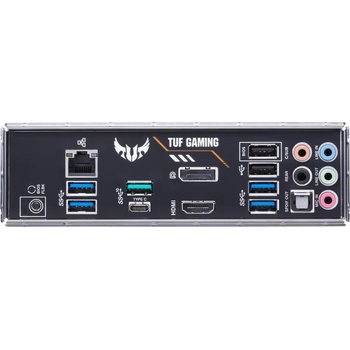

1 x DisplayPort; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A); 4 x USB 3.2 Gen 1 Type-A; 2 x USB 2.0; 5 x Audio jack(s); 1 x BIOS FlashBack Button(s)

LAN
Realtek® L8200A, TUF LANGuard

Memory type
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; 4 x DIMM, Max. 128GB, DDR4 4400(O. C)/3533(O. C)/3466(O. C. )/3200(O. C. )/3000(O. C. )/2800(O. C. )/2666/2400/2133 MHz Un-buffered Memory; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.

OS
Windows® 10 64-bit, Windows® 7 64-bit *5

Storage
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M. 2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2; AMD Athlon with Radeon Vega Graphics Processors : 1 x M. 2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2; 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x SATA 6Gb/s port(s); Support Raid 0, 1, 10; AMD B450 chipset : 1 x M. 2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*3; 4 x SATA 6Gb/s port(s); Support Raid 0, 1, 10

Гаранция
36 месеца
