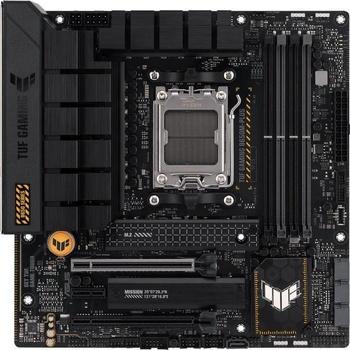

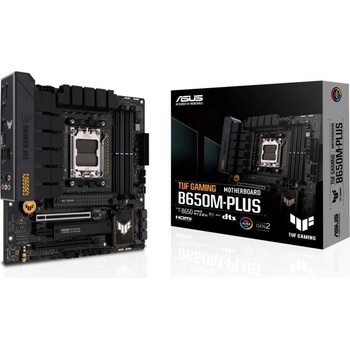

ASUS TUF Gaming B650M-PLUS

Model:TUF GAMING B650M-PLUSCPU socket:Socket AM5Processor family:AMD RyzenIntegrated CPU:NoChipset manufacturer:AMDChipset type:AMD B650Memory type:DDR5Number of DDR5 slots:4Memory bus frequency:6200 MHz
6400 MHz
5600 MHz
5400 MHz
5200 MHz
5800 MHz
6000 MHz
4800 MHz
5000 MHzMax memory size:128 GBExpansion slots:1 x PCIe 4.0 x 1
2 x PCIe 4.0 x 16Max. number of SATA devices:4RAID:YesDetailed data on disk/drive interfaces:Total supports 2 M. 2 and 4 SATA 6Gb/s ports* AMD Ryzen 7000 series desktop processors

• M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD B650 chipset

• 4 SATA 6Gb/s ports

*AMD RAIDXpert2 technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. Graphics:

• 1 DisplayPort*
• 1 HDMI port**

* Supports up to 8K @ 60Hz as per DisplayPort 1.4 specification. ** Supports 4K@60Hz according to the HDMI 2.1 specification. *** Support for VGA resolution depends on the resolution of the CPU or graphics card. Sound card:Realtek 7.1 Surround Sound High Definition Audio CODEC:

• Supports: plug-in detection, multi-streaming, changing plug-in tasks on the front panel
• Supports playback up to 24-bit/192kHz

Audio Features:

• Sound shielding
• High-quality audio capacitors
• Dedicated audio PCB layers

Network interface:1 x 10/100/1000/2500 Mbit/sNetwork interface:

• Realtek 2.5Gb Ethernet
• TUF LANGuard

USB ports at back panel:8USB ports on motherboard:7Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:4Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:3FireWire (IEEE 1394):NoCOM connector / port:YesLPT connector / port:NoExternal connectors:1 x Flash BIOS Button
1 x Central Speaker / Subwoofer
1 x Rear Speaker
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
4 x USB 2.0
1 x USB 3.0
2 x USB 3.1
1 x USB 3.1 Type-C
1 x HDMI
1 x DisplayPortOnboard connectors:1 x Front panel audio header
1 x 4pin CPU fan
1 x 4pin wentylator OPT CPU
3 x 4pin Chassis fan
1 x 4-pin water-pump-fan
1 x 4pin 12V power
1 x 8pin 12V power
1 x 24pin ATX zasilanie
2 x M. 2
4 x SATA III 6Gb/s
4 x USB 2.0/1.1
2 x USB 3.0 header
1 x Serial port header
1 x Thunderbolt header
1 x USB C
1 x Clear CMOS buttonSpecial functions:ASUS TUF PROTECTION

• DIGI+ VRM (- Digital power design with DrMOS)
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O

ASUS Q-Design

• M. 2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M. 2 heatsink
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• SafeDIMM

Aura Sync

• Aura RGB header
• Addressable Gen 2 headers

BIOS:256 Mb Flash ROM, UEFI AMI BIOSForm factor:micro ATXDimensions:24.4 x 24.4 cmSupported operating systems:Windows 11
Windows 10Software:ASUS Exclusive Software

• TUF GAMING CPU-Z
• DTS Audio Processing
• Norton Anti-virus software (Free Trialversion)
• WinRAR

Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancellation

AI Suite 3

• TurboV EVO
• DIGI+ VRM
• PC Cleaner

UEFI BIOS:

• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
