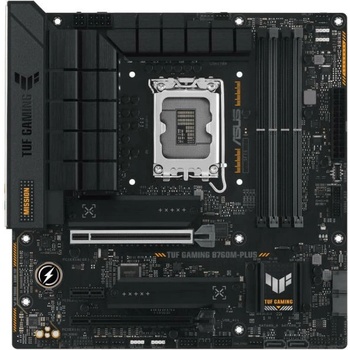

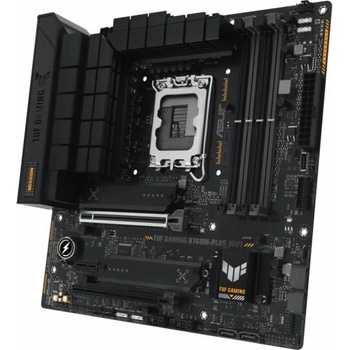

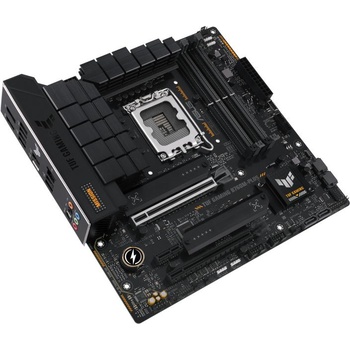

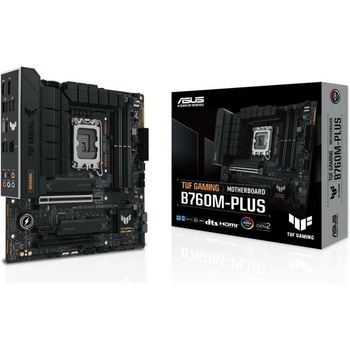

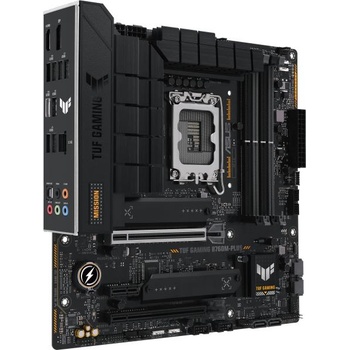

ASUS TUF Gaming B760M-PLUS

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4
ASUS TUF GAMING B760M-PLUS

Graphics: 1 x DisplayPort**; 1 x HDMIport***
CPU's supported: Intel® Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset: Intel® B760 Chipset
Expansion Slots: Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot
Storage: Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
Memory type: 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/640 0(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II

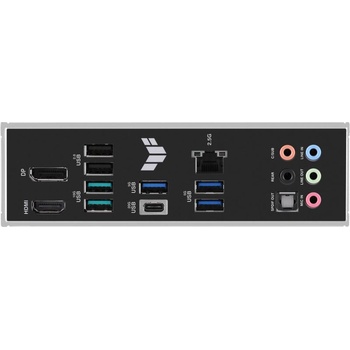

I/O: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 3 x USB 3.2 Gen 1 ports (3 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port
Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 2 x M. 2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) ; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x AURA RGB header; 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4®) header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback "; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers
LAN: 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor: mATX Form Factor; 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS: Windows® 11, Windows® 10 64-bit
Warranty: 36 Months



.
