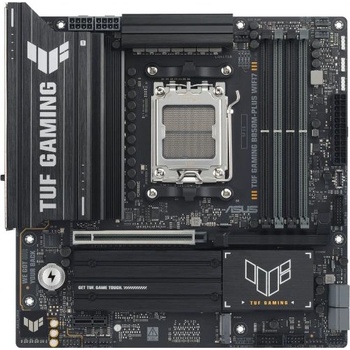

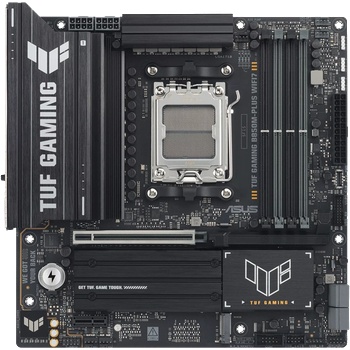

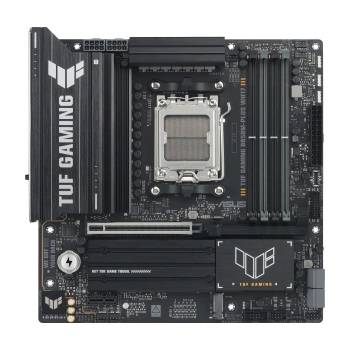

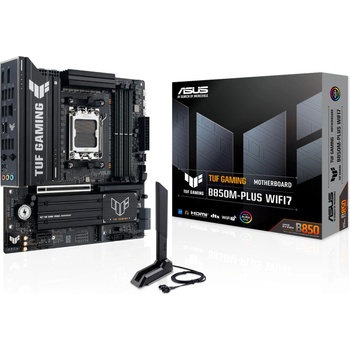

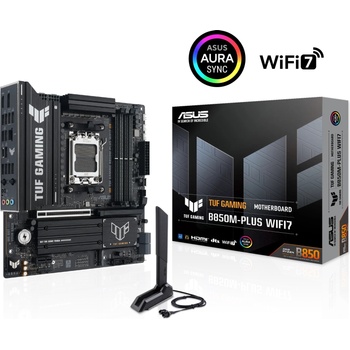

ASUS TUF GAMING B850M-PLUS WIFI7

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4 Снимка 5
ASUS TUF GAMI B850M-PLUS WIFI7

USB: Rear USB (Total 12 ports);1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 6 ports);1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 3 additional USB 2.0 ports
Manufacturer: ASUS
Wireless: Wi-Fi 7 (MediaTek MT7925);2x2 Wi-Fi 7* (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth;Bluetooth® v5.4
Memory type: 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO);ASUS Enhanced Memory Profile (AEMP)
Features: ASUS TUF PROTECTION;- DIGI+ VRM (- Digital power design with DrMOS);- ESD Guards;- TUF LANGuard;- Overvoltage protection;- SafeSlot;- Stainless-steel back I/O;ASUS Q-Design;- M. 2 Q-Latch;- PCIe Slot Q-Release;- Q-Antenna;- Q-Dashboard;- Q-DIMM;- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]);ASUS Thermal Solution;- M. 2 heatsink;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack button;- BIOS FlashBack LED;- ProCool;- Pre-mounted I/O shield;- SafeDIMM;Aura Sync;- Addressable RGB Gen 2 headers
CPU's supported: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD B850 Chipset
Bluetooth: 5.4
Graphics: 1 x DisplayPort;1 x HDMI port
Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B850 Chipset;1 x PCIe 4.0 x1 slot
Storage: Total supports 3 x M. 2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen 9000 & 7000 Series Desktop Processors;M. 2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen 8000 Series Desktop Processors;M. 2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode);AMD B850 Chipset;M. 2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports;AMD RAIDXpert2 Technology;Ryzen 9000 Series Processors: RAID 0/1/5/10;Ryzen 8000 Series Processors: RAID 0/1;Ryzen 7000 Series Processors: RAID 0/1/10
I/O: 1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack button;1 x Clear CMOS button
Connectors: Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;3 x M. 2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 3 additional USB 2.0 ports;Miscellaneous;3 x Addressable RGB Gen 2 headers;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front Panel System header
Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit
LAN: 1 x Realtek 2.5Gb Ethernet;TUF LANGuard
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor: micro-ATX Form Factor 24.4 cm x 24.4 cm
OS: Windows 11



.
