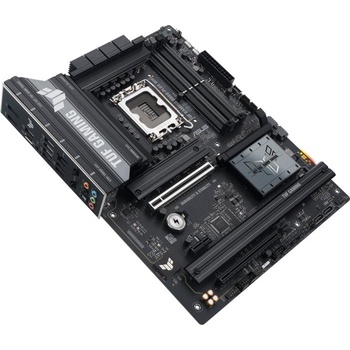

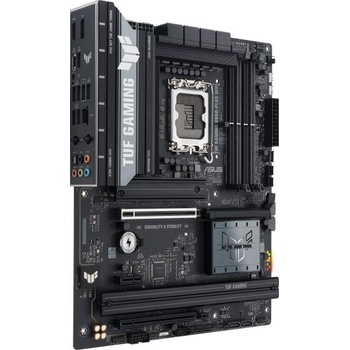

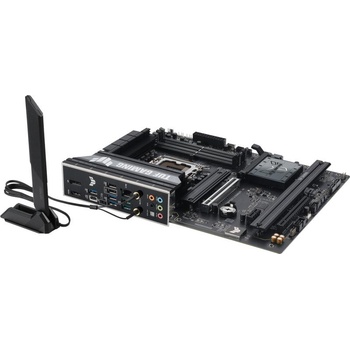

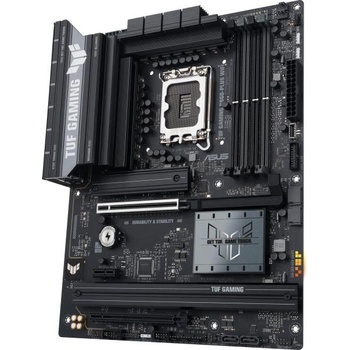

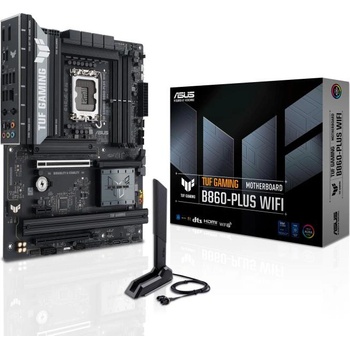

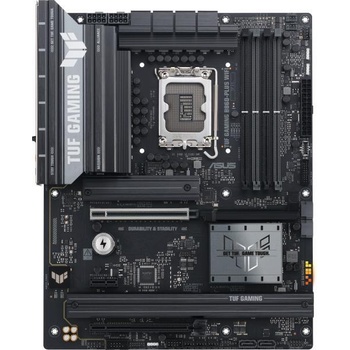

ASUS TUF Gaming B860-PLUS WIFI (90MB1JL0-M0EAY0)

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4
ASUS TUF GAMIN B860-PLUS WIFI

USB: Rear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C®);2 x USB 10Gbps ports (2 x Type-A);3 x USB 5Gbps ports (3 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 5 ports);1 x USB USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports;USB Type-C® power delivery output: max. 5V/3A
Manufacturer: ASUS
Wireless: Wi-Fi 7 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Memory type: 4 x DIMM slots, max. 256GB, DDR5;Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII)
Features: ASUS TUF PROTECTION;- DIGI+ VRM (- Digital power design with DrMOS);- ESD Guards;- TUF LANGuard;- Overvoltage protection;- SafeSlot;- Stainless-steel back I/O;ASUS Q-Design;- M. 2 Q-Latch;- PCIe Slot Q-Release;- Q-Antenna;- Q-Dashboard;- Q-DIMM;- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]);- Q-Slot;ASUS Thermal Solution;- M. 2 heatsink;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack button;- BIOS FlashBack LED;- CPU Socket lever protector;- ProCool;- Pre-mounted I/O shield;- SafeDIMM;Aura Sync;- Addressable Gen 2 headers
CPU's supported: Support Intel® Core Ultra Processors(Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Bluetooth: Bluetooth® v5.4
Graphics: 1 x DisplayPort;1 x HDMI port;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
Expansion Slots: Intel® Core Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot;Intel® B860 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);1 x PCIe 4.0 x1 slot
Storage: Total supports 3 x M. 2 slots and 4 x SATA 6Gb/s ports*;Intel® Core Ultra Processors(Series 2);M. 2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);Intel® B860 Chipset;M. 2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);M. 2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports
I/O: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);2 x USB 10Gbps ports (2 x USB Type-A);3 x USB 5Gbps ports (3 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack button;1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);2 x USB 10Gbps ports (2 x USB Type-A);3 x USB 5Gbps ports (3 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack button
Connectors: Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;3 x M. 2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front System Panel header;1 x Thunderbolt (USB4®) header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback";Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover
LAN: 1 x Realtek 2.5Gb Ethernet;TUF LANGuard
BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor, 30.5 cm x 24.4 cm
OS: Windows 11 (22H2 & later)



.
