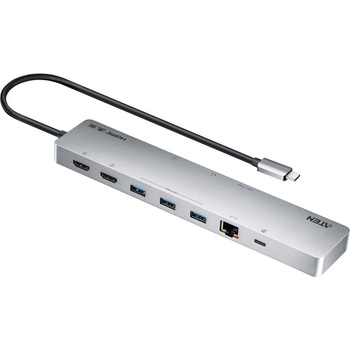

ATEN Докинг станция ATEN UH3240, от USB-C към 2x USB-C, 3x USB-A, 2x HDMI, 1x AUX, 1x RJ45, 1x SD четец, 1x MicroSD четец, сива (UH3240)

ATEN UH3240



Dual 4K Display

Extend to two 4K Display with Multi-Stream Transport (MST)



Enjoy Impeccable Visual Quality

Optimize your screen resolution to befit the task at hand

Vivid & Sharp 8K Display

Enthralling visual indulgence of entertainment apex

100W Power Delivery with PD 3.0

Power on your devices for your multitasking needs



Note: A self-supplied (original USB-C PD power adapter and cable from the source device is highly recommended) USB-C PD power adapter is needed.





11-in-1 USB-C Dock with Power Pass-through



Mult iplatform Support

*Relevant compatible devices must be USB-C enabled



Specifications



Computer Connections 1Cable Length 40cmConnectorsCo mputer 1 x USB-C 3.2 Gen 1 Male CableDevice 3 x USB 3.2 Gen 1 Type-A Female (Max. output 5V, 5W for each)*
1 x USB 3.2 Gen 1 Type-C Female (Max. output 5V, 5W)*

Note:
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 15W when UH3240 powered by external USB-C PD power adapter.
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 12W power output when the UH3240 is powered by PC via USB-C (@ 5V, 3A bus-powered). Video Output 2 x HDMI FemaleLAN Ports 1 x Gigabit Ethernet FemaleAudio 1 x 3.5mm stereo 4-pole microphone and headphone jackPower 1 x USB Type-C Female*

Note:
*Supports USB Power Delivery 3.0 for charging up to 100W, power profiles include 5V, 9V, 12V, 15V, and 20V.
*The minimum system power requirement for basic USB functions and video output should be at least 5V, 6W.
*A self-supplied (original USB-C PD power adapter and cable from the host device is highly recommended) USB-C PD power adapter is needed. PerformanceFlash Memory 1 x SD Card Slot (SD/SDHC/SDXC up to 2TB)
1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 2TB)Video Resolution Single View:
7680 x 4320;
3840 x 2160 @ 120 Hz
Dual View:
3840 x 2160 @ 60 Hz

Note:
*The max. resolution supported for only HDMI 2 is 4K @ 120 Hz.
*We recommend using self-supplied HDMI 2.1 cable or our ATEN 2L-7D02H21 HDMI cable for 8K resolution. For system requirement of the host device, it is highly recommended that the Intel 12thGeneration Core Processor is used to achieve 8K resolution.
*To get max bandwidth, the host should support standard DP 1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP 1.2 Alt mode supported device, the max resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation.
*For extend mode to work, a computer’s graphics card must support MST technology. Mac computers only support single-extended display with identical content on the two connected monitors.
*For MST (Extend Mode) – supports up 4K 3840 X 2160 @ 30 Hz; for SST (Mirror Mode) – supports up to 4K 3840 x 2160 @ 60 Hz. Power Consumption DC5V:18WBTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. System Requirements Windows 10 or above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www. intel. com/content/www/us/en/processors/process or-numbers. html

macOS 10.12 or later, USB-C enabled computer

Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode

iPadOS 13.1 or later, iPad (USB-C)*
*iPad only supports single view in mirror mode.

iOS 17.0 or later, iPhone (USB-C)*
*iPhone only supports single view in mirror mode. EnvironmentalOpe rating Temperature 0 – 40°CStorage Temperature -20 – 60°CHumidity 0 – 80% RH, Non-condensingPhysical PropertiesHousing AluminumWeight 0.18 kg ( 0.41 lb )Dimensions (L x W x H) 22.00 x 4.30 x 1.60 cm
(8.66 x 1.69 x 0.63 in. )Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
