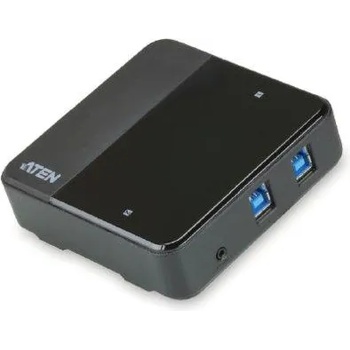

ATEN US234-AT

USB Device Sharing

Up to 4 computers can share up to 4 USB 3.0 peripheral devices, such as printer, graphics adapter, docking station or HD camera.



Simple and Convenient PC Selection

Simplifies desktop layout - select which computer needs to use the USB devices via the remote port selector.



Easy LED Identification

Port LEDs indicate which computer is active, making it easy to view the port selection status.





Specifications



Computer Connections 2Port Selection Remote port selector



Connectors

Comput er 2 x USB Type B Female (Blue)Device 4 x USB Type A Female (Blue)Power (Optional) 1 x USB micro B Female (Black)



Cable Length

USB Cable USB 3.2 Gen 1 B to A Cable 1.2m x 2Remote Port Selector 1.8 m



LEDs

Selected 2 (White)



Environmental

Oper ating Temperature 0–40°CStorage Temperature -20–60°CHumidity 0–80% RH, Non-condensing



Physical Properties

Housing PlasticWeight 0.12 kg ( 0.26 lb )Dimensions (L x W x H) 9.37 x 9.30 x 2.68 cm
(3.69 x 3.66 x 1.06 in. )



Note:

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
