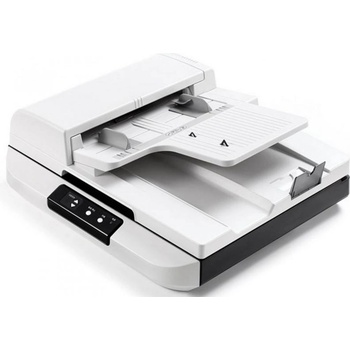

Avision AV 5200

Avision AV 5200
General Specification
Technology Contact Image Sensor (CIS)
Light Source LED (Light Emitting Diode)
Document feeding mode Flatbed and ADF
Optical Resolution (dpi) 600
Halftone Patterns Dither and Error Diffusion
Grayscale mode 16bits input 8bits output
Color mode 48bits input 24bits output
Memory Size 256MB SDRAM
Dimensions (WxDxH) 585 x 499 x 195 mm ( 23 x 19.6 x 7.7 in )
Weight 11.7Kg (25.8 lb)
Interface USB 2.0
Power Consumption Operation: < 30 W
standby: < 12 W
Power saving: < 5 W
Recommended Daily Volume Up to 3,000 sheets
OS Support Win XP/Vista/Win 7
Bundled Software PaperPort 11, ISIS Driver, Twain Driver, AVScan5.0, Button Manager 2
Features
Ultrasonic paper jam detection Yes
Long Paper Mode Up to 36 inch (200 dpi)
Up to 118 inch (300 dpi @ color simplex)
Scan Size
ADF Minimum 148 x 210 mm ( 5.8 x 8.3 in )
ADF Maximum 297 x 420 mm ( 11.7 x 16.5 in )
Flatbed Maximum 297 x 420 mm ( 11.7 x 16.5 in )
ADF Capacity 50 sheets
Paper Thickness and Weight 60 ~ 105 g/m2 ( 16 to 28 lb )
Scanning Speed
B/W @ 200dpi, A4 Simplex : 30 PPM
Duplex : 60 IPM
B/W @ 300dpi, A4 Simplex : 30 PPM
Duplex : 60 IPM
Color @ 200dpi, A4 Simplex : 30 PPM
Duplex : 60 IPM
Color @ 300dpi, A4 Simplex : 30 PPM
Duplex : 60 IPM
