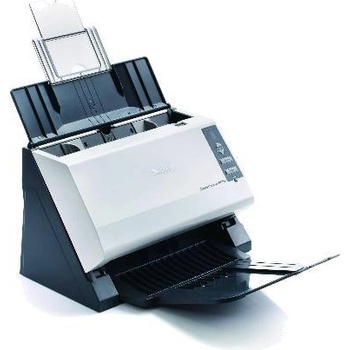

Avision AV186+

Avision AV186+
General Specification
Technology Color Charged-Coupled Device (CCD)
Light Source CCFL
Document feeding mode ADF
Optical Resolution (dpi) 600
Halftone Patterns Dither and Error Diffusion
Grayscale mode 16bits input 8bits output
Color mode 48bits input 24bits output
Memory Size 256MB SDRAM
Dimensions (WxDxH) 305 x 162 x 195 mm ( 12 x 6.4 x 7.7 in )
Weight 3.1 Kg ( 6.8 lb )
Interface USB 2.0
Power Consumption Operation: < 30 W
standby: < 26 W
Power saving: < 5 W
Recommended Daily Volume Up to 4,000 sheets
OS Support Win2K/XP/Vista/Win 7, Linux (optional)
Bundled Software ISIS driver, TWAIN driver, Button Manager, AVScan 5.0, PaperPort 11, Kofax VRS 4.5 (optional)
Features
Ultrasonic paper jam detection Yes
Long Paper Mode Up to 118 inch (300 dpi @ color simplex)
Card Scan Embossed card (Thickness 1.25mm)
Scan Size
ADF Minimum 50 x 63.5 mm (2 x 2.5 in )
ADF Maximum 216 x 356 mm ( 8.5 x 14 in )
ADF Capacity 50 sheets or 100 sheets(50g/m2)
Paper Thickness and Weight 28 ~ 400 g/m2 ( 7 to 110 lb ) **
Scanning Speed
B/W @ 200dpi, A4 Simplex : 40 PPM
Duplex : 80 IPM
B/W @ 300dpi, A4 Simplex : 30 PPM
Duplex : 60 IPM
Color @ 200dpi, A4 Simplex : 40 PPM
Duplex : 80 IPM
Color @ 300dpi, A4 Simplex : 30 PPM
Duplex : 60 IPM
