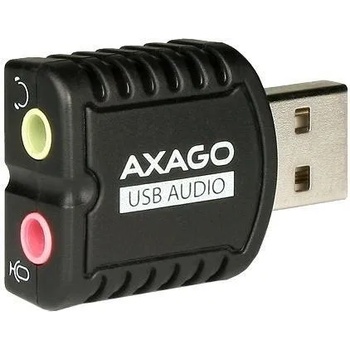

AXAGON ADA-10

AXAGON ADA-10 ADA-10 USB - MINI AUDIO

A miniature USB sound card quickly and easily adds a sound card to your computer.

Input USB 2.0, mono microphone inputOutput stereo headphone outputPC connection USB type A-M, integrated connectordesign miniature   Product Description

AXAGON ADA-10 SB audio MINI adapter easily and quickly adds an external USB sound card to your computer.

The installation can be handled even by a layman - only plug the adapter into the USB port of the computer and the rest is done automatically.

The miniature sound card is suitable for both desktop and laptop computers and allows headphones, microphones or headsets to be connected for Skype service, for example. It also serves well as a replacement for the broken original sound card in your laptop.

Outputs:
2-channel analog 16-bit output (3.5 mm stereo jack):
stereo output for headphones or active speakers.

Inputs:
1-channel analog 16-bit input (3.5 mm stereo jack):
mono microphone input.

Sampling rate, resolution and output converter (DAC) noise:
Analog - 44.1 / 48 kHz @ 16 bit for playback.
Signal-to-Noise ratio (Output SNR) ≥ 93dB.
Harmonic distortion (Output THD + N) ≤ -70dB.

Sampling rate, resolution and input converter (ADC) noise:
Analog - 44.1 / 48 kHz @ 16 bit for recording.
Signal-to-Noise ratio (input SNR) ≥ 83dB.
Harmonic distortion (input THD + N) ≤ -76dB.

Indicators:
A green LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking).

Other features:
USB 2.0 full speed 12 Mbit/s and USB 1.1 compatible interface.
Built-in direct USB Type A male connector.
Easy to install thanks to full Plug and Play support.
Possibility to connect your device while running thanks to the Hot Plug support.
Compliant with the USB Audio Device Class specification v1.0.
Compliant with the USB HID Class specification v1.1.
Adapter power supply via USB (bus power) - no auxiliary power supply required.
Miniature dimensions of 39 x 24 x 12 mm, when inserted into the USB port, the adapter protrudes only 27 mm.

The CMedia HS-100 chipset was used.

Setting up a sound card in Windows allows:
Adjusting volume and balance of speakers.
Enhanced speaker features: Bass Boost, Virtual Surround Sound, Room Correction, Loudness Equalization.
Setting the sampling rate and bit depth for both reproduction and recording.
Setting the automatic level of gain for the microphone (Automatic Gain Control).
Setting the manual level of gain for the microphone.

Supported OSs:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.4. x and higher, Linux with kernel 2.6. x and above.
Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.
Compatible with all Internet telephony programs using the sound card.

Package contains:
audio adapter,
packed in a blister with a sealed-on back card with the installation procedure.

Technical SpecificationInput  interface USB 2.0 / USB 1.1rate 12 / 1.5 Mbit/s (full / low speed)connector USB Type A male in-builtcable noAudio outputs  analog output 2-channel stereo output for headphones or active speakerssampling rate 44.1 / 48 kHz analogresolution 16 bit for playbacksignal-to-noise ratio ≥ 93dB (Output SNR) for DACharmonic distortion ≤ -70dB (Output THD+N)connector 3.5 mm stereo jackAudio inputs  analog input 1-channel mono microphone inputsampling rate 44.1 / 48 kHz analogresolution 16 bit for recordingsignal-to-noise ratio ≥ 83dB (Input SNR) for ADCharmonic distortion ≤ -76dB (Input THD+N)connector 3.5 mm stereo jackSupported features  surround sound noautomatic installation yesPlug and Play yesHot Plug yesOther features  indication green LED - connection to the USB port of the computer (permanently on), data transmission (flashes)chipset CMedia HS-100dimensions 39 x 24 x 12 mmPower supply  on the bus yes (USB bus power)OS support  MS Windows 10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions)MS Windows Server 2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions)Mac OS X 10. x and higherLinux kernel 2.6. x and higher
