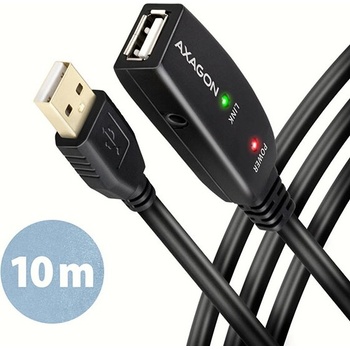

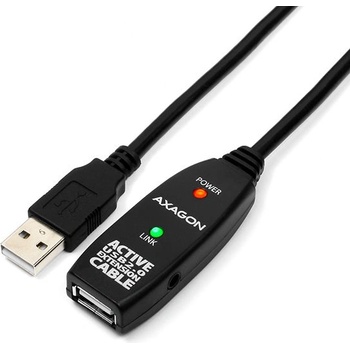

AXAGON ADR-210

ADR-210 USB repeater cable 10 m
Active extension USB 2.0 A-M > A-F cable, 10 m long. Power supply option.

Input
USB 2.0

Output
USB 2.0, USB type A-F

PC connection
USB type A-M, permanently connected cable, cable 10 m

Power supply
on the bus, through power adapter

design
active

Extra
shielded

Activeextension AXAGON ADR-210USB 2.0 cable, 10 m long. The USB repeatercable strengthens the passing USB signal and allows you to connect asignificantly more distant USB device than the usual 5 meters whenpassive cables are used. You can connect several repeater cables in arow.
Agreat advantage of the ADR-210 extension is an integrated auxiliarypower supply connector. In most cases, USB bus power is sufficient, butfor devices with larger power consumption the USB power supply may beinadequate and auxiliary power from the mains may resolve the problem.
Theremarkably compact body of the AXAGON repeater allows for trouble-freeuse in electrical installation strips or cable systems.
The use of a high quality shielded cable ensures high communication speed and minimal undesirable interference.
Input:
USB 2.0 for connection to a computer
USB Type A (M) male connector to connect to the computer
Output:
USB 2.0 for connecting a remote USB device
USB Type A (F) female connector
transmission rate 480 / 12 / 1.5 Mbit/s (high / full / low speed)
Power supply:
Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA).
For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.
The active part of the cable includes a connector (Ø 3.5 x 1.3 mmouter x internal diameter) for additional external power supply of5V/1-2 A.
The power cable USB A-M / 3.5 mm jack, 1.2 m long is included. Thecable allows powering from a standard mobile phone charger with USB-Aoutput 5V / min. 1A, e. g. AXAGON ACU-DS16.
When powering the repeater cable with the power adapter, an external2.5" disk can be connected without the need for own power supply to thedisk.
For longer USB route with multiple repeater cables connected in a row, the USB bus supply may be inadequate for USB devices with lower powerconsumption than an external 2.5" drive. Also in this case it can helpto boost the power supply by connecting a power adapter.
Other features:
Fully compatible with USB 2.0 and backward compatible with USB 1.1.
Full Plug and Play and Hot Plug support.
Two LEDs indicating power and USB connection.
Behind the active USB cable, a common passive USB cable can also be used.
Dimensions of active part with are 56 x 22 x 14 mm, cable length 10 m.
Weight 330 g.
Supported OS:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, WindowsServer 2003 / 2008 / 2012 / 2016 / 2019 and later (all 32- and 64-bitWindows versions supported), Mac OS X 10. x and higher Linux with 2.6. xkernel and higher.
Note: Drivers are included with supported operating systems and willbe installed automatically. No other drivers need to be installed andare not even available.
Package contains:
USB 2.0 A-M > A-F active repeater 10 m long,
USB-A / 3.5 mm power cable,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR /GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN /ARA,
packed in a cardboard box.

interface
USB 2.0 / USB 1.1

rate
1.5 / 12 / 480 Mbit/s (low / full / high speed)

connector
USB Type A male on the cable

cable
10 m, permanently connected

Output

interface
USB 2.0

number of ports
1

connector
USB Type A female

Supported features

overload protection
yes

automatic installation
yes

Plug and Play
yes

Hot Plug
yes

Other features

design
active

shielding
yes

indication
red LED / POWER - power supply connection (permanently on)

indication
green LED / LINK - USB device connection (permanently on)

dimensions
65 x 22 x 13 mm (active part)

weight
338 g

Power supply

on the bus
yes (USB bus power)

through power adapter
yes (possibility to connect power adapter)

OS support

MS Windows
10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions)

MS Windows Server
2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions)

Mac OS
X 10. x and higher

Linux
kernel 2.6. x and higher
