AXAGON ADSA-FP3

AXAGON ADSA-FP3

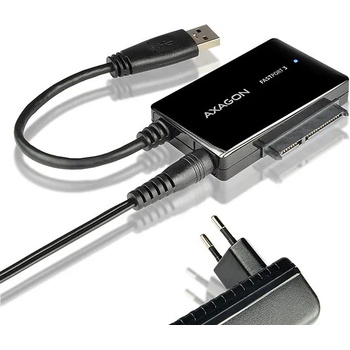

The handy helper FASTport 3 easily and quickly connects any SATA disk or drive to your computer.

Supports all types of 2.5" HDD / SSD, 3.5" hard disks and 5.25" optical CD, DVD or Blu-ray drives.

It deals with all SATA, SATA II and SATA III disks without limiting maximum capacity.

ANY SIZE ANY CAPACITY

The USB 3.0 interface guarantees seamless, high-speed connectivity to all existing computers.

The current SATA III / 6G interface allows to use the speed of modern SSD disks.

USB 3.0 SATA 6G

Reading of S. M. A. R. T. information monitoring the condition of the connected disks.

Supports spindown of connected disks as well as an adapter.

The possibility to boot your PC from HDD / SSD connected via FASTport 3 adapter.

HDD S. M. A. R. T. INFO HDD AUTO STOP BOOT SUPPORT

Automatic installation can be handled even by a layman. Drivers are included with operating systems and are installed completely automatically.

The permanently attached USB cable for direct connection to the computer is always at hand and will not be lost.

The adapter with 2.5" HDD/SSD is just enough to power on the USB bus, no need to handle the network-based feeder.

AUTO INSTALL FIXED USB CABLE USB POWER

Pure minimalist design of slim and lightweight body.

The delicate blue LED indicates power and data transmission.

PURE DESIGN SLIM CASE DELICATE BLUE LED

Tech specs

Input


interface
USB 3.0 / USB 2.0 / USB 1.1

rate
5000 / 480 / 12 Mbit/s (super / high / full speed)

connector
USB Type A male on the cable

cable
22 cm, permanently connected

Output


interface
Serial ATA 3.1

rate
6 / 3 / 1.5 Gbit/s (SATA III / SATA II / SATA I)

connector
22-pin SATA data and power female

compatibility
all SATA I / SATA II / SATA III disks and drives

total permeability
5 Gbit/s theoretically (given by USB 3.0 input)

Supported device


2.5"
yes (SATA HDD/SSD)

3.5"
yes (SATA HDD)

5.25"
yes (SATA DVD/DVD-RW/Blu-ray)

max. disk capacity
all, without limitations

max. height of 2.5" disk
all, without limitations

Supported features


UASP
no

TRIM
no

S. M. A. R. T.
yes

boot from connected disk
yes

putting disk to sleep
yes (HDD Auto Spindown / 15 min)

disk turning off
yes (HDD Turn Off)

automatic installation
yes

Plug and Play
yes

Hot Plug
yes

Other features


design
plastic

screwless mounting
yes

indication
blue LED - connection to the USB port of the computer (permanently on), data transmission (flashes)

dimensions
71 x 46 x 14,3 mm

weight
39 g (incl. USB cable)

Power supply


on the bus
yes (USB bus power only for 2.5" HDD/SSD)

through power adapter
yes (power adapter included)
