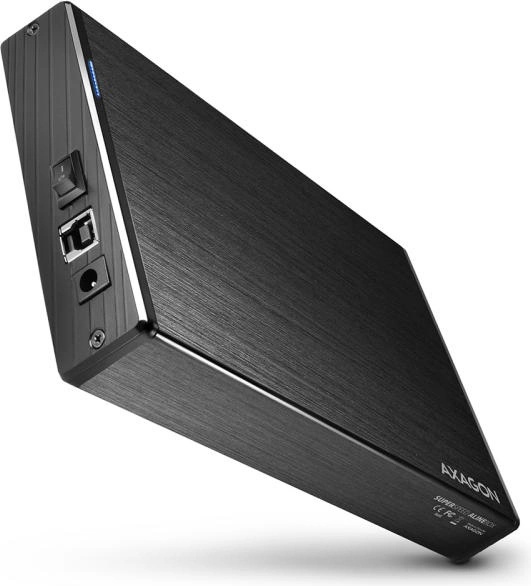

AXAGON Aline Box 3.5 USB 3.0 (EE35-XA3)

AXAGON EE35-XA3

The compact aluminium AXAGO EE35-XA3 ALINE external box with a high-speed USB 3.0 interface intended for 3.5" SATA disks.

Durable cast aluminum case for perfect mechanical protection of the disk and excellent heat dissipation.

The decently shaped case with a brushed surface ensures an elegant look.

Reading of S. M. A. R. T. information monitoring the condition of the external disk. Supports spinning down of connected disks as well as the box.

Easy installation of the hard disk as well as automatic installation can be handled even by a layman.

Features:
Compatible with USB 3.0 and backward compatible with USB 2.0.
Supports transmission rates 12 / 480 / 5000 Mb/s (low / full / high speed).
Supports 3.5" SATA III / II / I disks of all capacities without limitation.
Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
The total bandwidth / transmission rate of the box is determined by the SATA/300 interface used (theor. 3 Gbit/s).
SSD/HDD boot support in external box.
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
HDD Auto Spindown support - possibility to set the interval for disk spindown when idle.
Connection via durable large USB 3.0 Type B female connector.
An 80 cm long USB 3.0 cable USB Type A male/USB Type B male is included.
A blue, decent LED indicates the connection to the computer's USB port (permanent light) and the data transmission (blinking).
The durable box body is a cast aluminum alloy, the box faces are plastic.
Simple disk installation - the guides are mounted on the disk, the disk is plugged directly into the SATA connector of the motherboard, and inserted into the box body; the front panel is fastened with two screws using a screwdriver that is included.
Compact adapter dimensions 180 x 120 x 32 mm.
External box weight 244 g (without cables and disk).

Power supply:
Power supply via a compact external AC/DC adapter 12 V - 2.5 A (24 W) with a 150 cm long supply cable.
Power switch on the rear panel of the box.
AC adapter dimensions 74 x 36 x 91 mm (incl. fork).
AC adapter weight 128 g (incl. supply cable).
