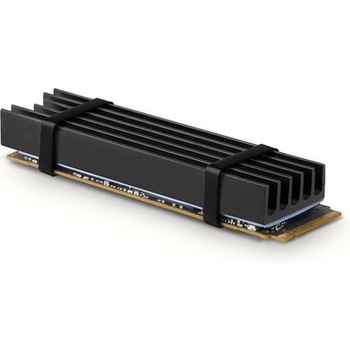

AXAGON Cooler for M. 2 SSD, passive, alum. , AXAGON CLR-M2L10 (CLR-M2L10)

CLR-M2L10 heatsink for M. 2 SSD
Passive aluminum heatsink for all M. 2 SSDs, size 2280, high 10 mm.

Output
M. 2 NVMe, M. 2 SATA

Device support
M. 2 2280

design
metal casing

Extra
passive cooler

AXAGON CLR-M2L10 ALU passive heatsink for ideal cooling of high performance M. 2 SSDs, especially NVMe.
Theuniversal passive heatsink can be used for M. 2 cards, size 22 x 80 mm. Two supplied thermally conductive pads allow cooler installation for allone-sided as well as double-sided M. 2 SSD disks.
10mmhigh ribbed aluminum heatsink assists in a better dissipation of heatgenerated during the M. 2 SSD operation. It also reduces the drivetemperature by up to 25°C. This prolongs the M. 2 SSD life and preventsdisk slow down, so-called "Thermal Throttling".
Thanksto its easy installation and compact dimensions, the heatsink can beused not only with M. 2 AXAGON adapters, but also with M. 2 (NGFF) slotson motherboards, etc. Thanks to the 10 mm height the cooler achievesmaximum cooling efficiency.
Features:
Support of M. 2 drives of any capacity.
Support of both one-sided and double-sided M. 2 drives.
Support of M. 2 drives, size 22 x 80 mm.
Support of SATA (AHCI) as well as NVMe (PCI-Express) M. 2 drives.
Ribbed aluminum heatsink body.
2 thermally conductive pads can be deliberately combined and used for both one-sided and double-sided SSDs.
Compact dimensions 77 x 22 x 10 mm.
Weight 19 g.
Package contains:
passive heatsink,
2 thermally conductive pads,
mounting material,
packed in a cardboard box with clearly indicated parameters.

Supported device

M. 2 22110
-

M. 2 2280
yes

M. 2 2260
-

M. 2 2242
-

M. 2 2230
-

double-sided M. 2
yes

single-sided M. 2
yes

Other features

dimensions
77 x 22 x 10 mm

weight
19 g
