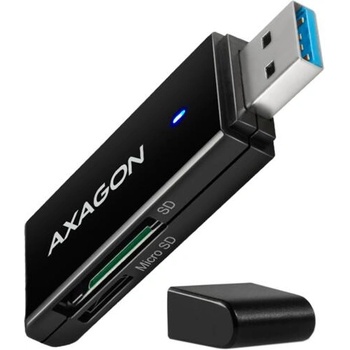

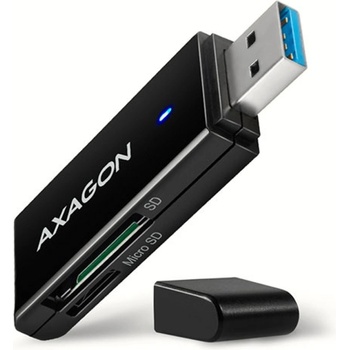

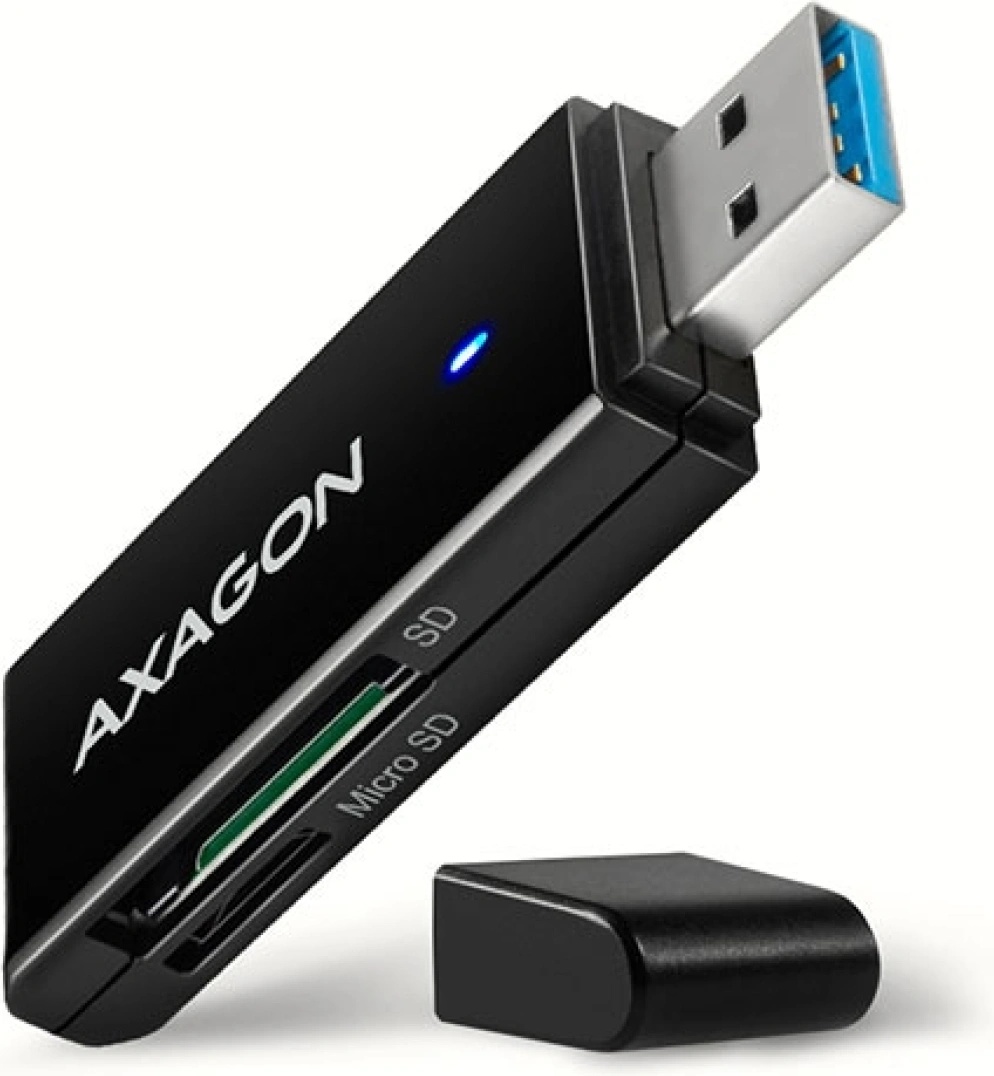

AXAGON CRE-S2N

CRE-S2N SuperSpeed USB-A CARD READER
Slim super-speed USB 3.2 Gen 1 card reader with a direct USB-A connector.

Input
USB 3.2 Gen 1

Card slots
2 slots, SD, microSD

PC connection
USB type A-M, integrated connector

design
external

SlimUSB 3.2 Gen 1 Memory Card Reader AXAGON CRE-S2N SUPERSPEED supports allcurrent versions of SD and microSD cards including SDXC and microSDXCwith capacity up to 2TB.
WithUSB 3.2 Gen 1 (USB 3.0) interface, the reader achieves significantlyhigher data rates for UHS-I SD cards compared to USB 2.0 interfacereaders.
The card reader allows simultaneous handling of cards in both slots and direct copying between them.
Theslim body of the reader does not prevent the use of secondary USB portson the computer. Card reader matte surface limits the creation offingerprints.
The installation is very easy - only plug the reader into the computer USB port and the rest is done automatically.
Card reader - two slots, supports the following formats:
Micro SD slot: microSD / microSDHC / microSDXC / TransFlash,
SD slot: Secure Digital, SDHC, SDXC, MultiMedia Card, MMC 4.0, MMCDual Voltage, MMC mobile, RS-MMC, with miniSD, MMC Micro adapter.
The reader supports the following flash card specifications:
SD 1.0 / 1.1 (SD - Secure Digital, up to 2GB).
SD 2.0 (SDHC - Secure Digital High Capacity, up to 32GB).
SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB).
MMC and eMMC 3. x/4.0/4.1/4.2/4.3/4.4/4.5/5.0 (8-bit).
Support for SD 3.01 and SD Jukebox applications (CPRM functions).
Ultra High Speed UHS-I support (SDR12/SDR25/SDR50/DDR50/SDR104) speeds up to 104 MB/s.
Supports ECC (Error Correction Code) function and CRC (Cyclic Redundancy Check) function.
2 LUN - in file managers, the reader is indicated as two disk drives.
FAT 12/16/32, NTFS, exFAT (FAT 64) file formats support.
Other features:
SuperSpeed USB - USB 3.2 Gen 1 interface (before USB 3.1 Gen 1 / USB 3.0).
Also compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 and USB 1.1.
Supports transmission rates 12 / 480 / 5000 Mbit/s (full / high / super speed).
Full Plug and Play and Hot Swap support.
Connects via USB type A male connector.
Support for connection of phones with microUSB connector via OTG adapter.
USB-bus card reader power supply.
A blue LED indicating the connection to the computer's USB port (permanent light) and data transfer (blinking).
Dimensions 68 x 21 x 10.
Weight 11 g.
Supported Operating Systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, WindowsServer 2003 / 2008 / 2012 / 2016 and later (all 32- and 64-bit Windowsversions supported), Mac OS X 10. x and higher Linux with 2.4. x kerneland higher, Android all versions.
Note: Drivers are included with supported operating systems and willbe installed automatically. No other drivers need to be installed andare not even available.
Package contains:
SuperSpeed USB card reader,
USB connector cap,
packed in a cardboard box with a hanging hole.

Input

interface
USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 / USB 2.0 / USB 1.1

rate
5000 / 480 / 12 Mbit/s (super / high / full speed)

connector
USB Type A male in-built

cable
-

card reader

number of slots
2

SD slot
SD / SDHC / SDXC, MMC, MMC mobile, RS-MMC, with miniSD / miniSDHC / MMC Micro adapter

microSD slot
microSD / microSDHC / microSDXC / TransFlash

Supported features

automatic installation
yes

specification of SD flash cards
SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2 TB)

specification of SD flash cards
SD 1.0 / SD 1.1 (SD - Secure Digital, up to 2 GB)

specification of SD flash cards
SD 2.0 (SDHC - Secure Digital High Capacity, up to 32 GB)

specification of MMC flash cards
3. x/4. x/5.0 (8-bit)

file formats
FAT 12/16/32/64, NTFS, exFAT (FAT 64) and others

Plug and Play
yes

Hot Plug
yes

Hot Swap
yes

Other features

indication
1 LED

number of icons
2 LUN - the reader appears as two drives in file managers

dimensions
68 x 21 x 10 mm

weight
11 g

Power supply

on the bus
yes (USB bus power)

OS support

MS Windows
10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions)

MS Windows Server
2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions)

Mac OS
X 10. x and higher

Linux
kernel 2.4. x and higher
