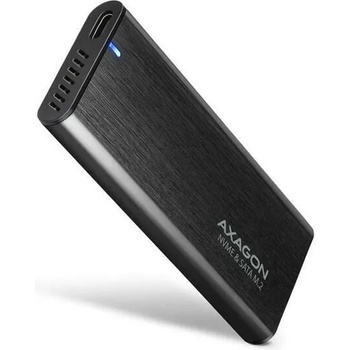

AXAGON EEM2-SB2 USB 3.2

EEM2-SB2 SuperSpeed+ USB-C - M. 2 NVMe & SATA SSD RAW box

External USB-C 3.2 Gen 2 metal box for M. 2 NVMe & SATA SSD disks. Screwless.

Input
USB 3.2 Gen 2

Output
M. 2 NVMe, M. 2 SATA, UASP

rate
up to 10 Gbit/s

PC connection
Reductions, USB type A-M, USB type C-M, disconnectable cable, cable 20 cm

Device support
M. 2 2242, M. 2 2260, M. 2 2280

design
metal casing

Extra
TRIM

Technical specifications

Input

interface
USB 3.2 Gen 2 / USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 / USB 2.0

rate
10.000 / 5.000 / 480 Mbit/s (super+ / super / high speed)

connector
USB Type C female (on the box)

connector
USB type A male (on cable to PC)

connector
USB type C male (for reduction to PC)

cable
20 cm, detachable + adapter

Output

interface
NVMe M. 2 (PCI-Express)

interface
SATA M. 2 (AHCI)

connector
75-pin M. 2 M-key

compatibility
NVMe M. 2 SSD nebo SATA M. 2 SSD

total permeability
10 Gbit/s theoretically (given by USB 3.2 Gen 2 input)

Supported device

M. 2 22110
-

M. 2 2280
yes

M. 2 2260
yes

M. 2 2242
yes

M. 2 2230
-

max. disk capacity
all, without limitations

Supported features

UASP
yes

TRIM
yes

boot from connected disk
yes

automatic installation
yes

Plug and Play
yes

Hot Plug
yes

Other features

design
metal

screwless mounting
yes

indication
1 LED

dimensions
94 x 41 x 10 mm

weight
35 g

Power supply

on the bus
USB bus power

through power adapter
-

OS support

MS Windows
11 / 10 / 8.1 / 8 / 7

Mac OS
yes

Linux
yes
