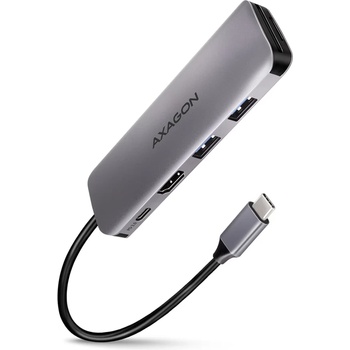

AXAGON HMC-5

The USB hub offers two USB outputs with standard USB-A connectors. The hub can also handle permanent connection of several external drives simultaneously. Transfer rate up to 5Gb/s thanks to the fast USB 3.2 Gen 1 interface. The hub will also charge phones and tablets with a current up to 1.5A/5V. So hub can easily charge an Android smartphone, Apple iPhone, Apple iPad etc.

USB-C connector is dedicated to power up a laptop or mobile phone using Power Delivery 3.0 technology by power up to 100W. Connect the USB-C Power Delivery charger to the hub and connect the hub to the laptop. This saves one USB-C port. The condition is a laptop with Power Delivery charging support from the USB-C port and a suitable PD charger.

HDMI output provides high quality image up to 4K/30Hz Ultra HD resolution and supports multi-channel audio transmission. Popular gaming resolution WQHD 2560 x 1440px at 60Hz or FullHD 1920 x 1080px at 60, 100 and 120Hz max. are also supported. DisplayPort Alternate Mode (DP Alt Mode) enabled USB-C port or Thunderbolt 3 port is necessary for the proper function of video output.

Card reader supports all current versions of SD and microSD cards including SDXC and microSDXC with capacity up to 2TB. High data transfer speed ensured by USB 3.2 Gen 1 interface. The card reader enables simultaneous handling of cards in both slots and direct copying between them.

Power Delivery:
Power Delivery 3.0 support – device power supply from the PD wall charger via USB-C hub.
Maximum power supply power via PD USB-C hub output 100W - 20V/5A.
Notebook or phone with Power Delivery charging support from the USB-C port and a suitable PD charger is necessary.

Specifications

Input:
interface
USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 / USB 2.0

interface
USB-C (DisplayPort Alternate Mode)

rate
5000 / 480 / 12 / 1.5 Mbit/s (super / high / full / low speed)

connector
USB Type C male (on the cable)

cable
20 cm

Output:
interface
USB 3.2 Gen 1

interface
HDMI

number of ports
4

output power
100W - 20V/5A

connector
2x USB-A

connector
HDMI A

connector
USB-C

Supported features:
max. charging current / port
1.5 A (5V)

total charging current
2.5 A (5V)

USB Power Delivery
yes

overload protection
yes

max. resolution
4096 x 2160 @30Hz 4K x 2K

display modes
mirroring / extending the primary monitor area

sound transmission
yes

automatic installation
yes

Hot Plug Detect
yes (HPD - connecting / disconnecting device when running)

Plug and Play
yes

Hot Plug
yes

Other features:
design
metal

indication
1 LED

Power supply:
on the bus
USB bus power

through power adapter
Power Delivery
