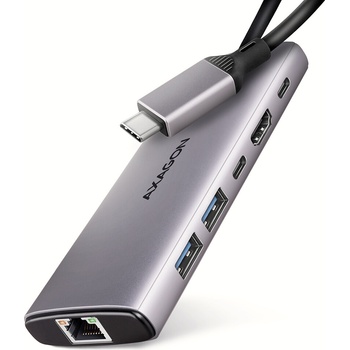

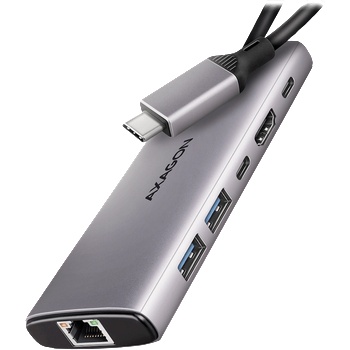

AXAGON HMC-6G2L

The multi-port USB-C 10Gbps AXAGON HMC-6G2L hub 6in1 expands your laptop, computer or phone with six ports. You can easily and quickly connect a monitor, three USB devices and a Gigabit Ethernet network to the computer at the same time via the double-sided USB-C connector. You also get the possibility to supply laptop using Power Delivery technology at the same time. The port replicator will thus provide you with a simple and compact 6-in-1 docking station not only for Windows laptops but also for Apple laptops such as MacBook Air or MacBook Pro.

The USB hub offers three USB 10Gbps outputs. Two with standard USB-A and third with USB-C data connector. With the advanced USB 3.2 Gen 2 standard, you can connect high-speed devices such as NVMe M. 2 external drives to all outputs at up to 2x the speed of 10 Gb/s compared to standard Gen 1 hubs with only 5 Gbps. The hub can permanently connect several external drives simultaneously and also allows charging of phones and tablets with up to 1.5A/5V current. From the hub, you can easily charge e. g. Android smartphone, Apple iPhone, Apple iPad etc.

Another USB-C (PD) connector is reserved only for charging phones or laptops using Power Delivery 3.0 technology with up to 100W of power. Connect a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This saves one USB-C port.

HDMI output provides high quality image up to 4K/60Hz Ultra HD resolution and supports multi-channel audio transmission. High frequencies at popular gaming resolutions of 2K/120Hz or FullHD/240Hz are also supported. Thanks to HDR (high dynamic range) support, you can enjoy a significantly expanded range of colours and contrasts. For video outputs to work properly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3, 4 port and above.

Gigabit network card extends your computer by a fast and stable network connection, adds the missing RJ-45 network connector or another network card.

The compact and slim aluminium body not only looks great, but also provides mechanical durability and passive cooling. You will also be pleased with the finely textured surface, which does not leave fingerprints.

Specifications

Input
interface: USB-C (DisplayPort Alternate Mode)
interface: USB 3.2 Gen 1
connector: USB Type C male (on the cable)
cable: 15 cm

Output
interface: USB 3.2 Gen 1
interface: Gigabit Ethernet
interface: HDMI
output power: 100W - 20V/5A
connector: HDMI A
connector: Power Delivery 3.0
connector: RJ-45
connector: USB-A 2x

Supported features
max. resolution: 4096 x 2160 @60Hz 4K x 2K
sound transmission: yes
Plug and Play: yes
Hot Plug: yes

Other features
design: aluminum
dimensions: 120 x 46 x 15 mm
weight: 79 g

Power supply
on the bus: USB bus power
through power adapter: Power Delivery

OS support
MS Windows: 10 / 11 and higher
Mac OS: yes
Linux: yes
Android: yes
Chrome: yes
