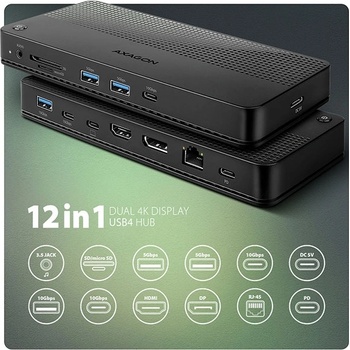

AXAGON HMC-U4

Features:
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Standby mode support.
Power supply via USB bus (USB bus power).
Power supply via PD charger (not included).
Additional power supply for USB ports (USB-C DC 5V connector). Any USB charger (not included) with 5V output voltage and 2A current can be used.
  ON/OFF button to switch the docking station on/off.
The LED indicates the connection of the dock to the computer with a steady glow.
High quality shielded cable ensures fast communication speed and minimal unwanted interference.
Dimensions 188 x 80 x 20 mm.
Weight 164 g (without cable).

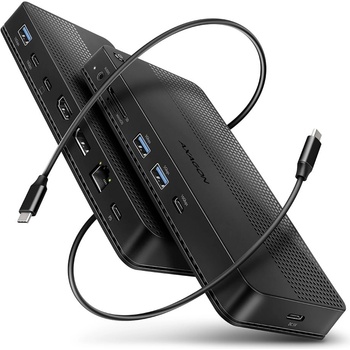

  USB-CUSB-C cable 80 cm long for connecting the dock to a laptop.
USB-AUSB-C cable 100 cm long for connecting additional power supply.



Specifications

Input  interface USB Power Delivery 3.0interface USB-C (DisplayPort Alternate Mode)interface USB 4 40Gbpsconnector USB Type C male (on the cable)cable 80 cmcompatibility Thunderbolt 3/4compatibility USB 10Gbps / USB 5Gbps   Output  connector 1x USB-A 10Gbpsconnector 2x USB-C 10Gbpsconnector HDMI 8K/30Hzconnector DP 8K/30Hzconnector 3.5 mm audio JACK 384kHz@24bitconnector slot Micro SD UHS-Iconnector slot SD UHS-IIconnector RJ-45 1Gbpsconnector 2x USB-A 5Gbps   Card reader  number of slots 2SD slot SecureDigital / SDHC / SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter - miniSD, microSD / microSDHC / microSDXC, MMC MicromicroSD slot microSD / microSDHC / microSDXC / TransFlash   Supported features  HDCP yes (v1.4, v2.3)HDR yes (10bit)2 LUN yesUSB Power Delivery yesmax. resolution 1 monitor - up to 8K/30Hz, 4K/144Hz, 2K/240Hz, 1080p/360Hzmax. resolution 2 monitors - up to 4K/144Hz + 60Hz, 2K/240Hz + 144Hz, 2x 1080p/240Hzsound transmission yes (DAC - 384kHz@24bit playback / ADC - 192kHz@24bit recording)Plug and Play yesHot Plug yes   Other features  indication 1 LEDcontrols ON/OFF buttondimensions 188 x 80 x 20 mmweight 164 g   Power supply  additional power supply DC 5Von the bus USB bus powerthrough power adapter Power Delivery 100W   OS support  iPadOS yesiOS yesMS Windows 11 / 10Mac OS yesLinux yesAndroid yesChrome yes
