AXAGON PCEM2-N

PCEM2-N PCIe NVMe M. 2 adapter
The PCI-Express x4 internal adapter for connecting an NVMe M. 2 SSD disk to a computer.

Input
PCI-Express, 4-Lane

Output
M. 2 NVMe

PC connection
x4 slot, x8 slot, x16 slot

Device support
M. 2 2230, M. 2 2242, M. 2 2260, M. 2 2280

design
standard profile

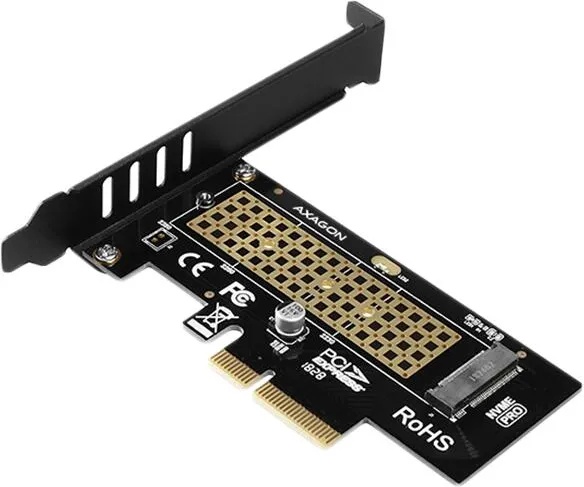

The AXAGON PCEM2-N internal adapter allows connecting an M. 2 SSD disk to a desktop computer using a PCI-Express bus.
High-qualityconstruction, compact size, and well thought-out design make theadapter an ideal choice for upgrading a desktop computer that is notequipped with an M. 2 slot.
Theadapter supports the use of NVMe (PCI-Express) M. 2 SSD disks, bothone-sided and double-sided ones. The reduction does not have a limit ofSSD disk capacities and M. 2 cards with a size of up to 22x80 mm can beused.
Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved.
Thethermally conductive pad and coppered vents help to remove better heatgenerated during the operation of M. 2 SSD disks. The LED indicationindicate either connection or data transfer in the M. 2 slot. The packagealso contains a low profile bracket for mounting the adapter into lowprofile cases.
Input:
PCI-Express interface, compatible version PCI-Express: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a.
Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots.
Output:
NGFF 75-pin M-key slot to install an NVMe (PCI-Express) M. 2 SSD disk.
Other features:
Full Plug and Play support.
Support of M. 2 disks with the sizes – 2230, 2242, 2260, 2280 mm.
Support of M key or B+M key NVMe (PCI-Express) M. 2 SSD disks without a maximum capacity limit.
Support of both one-sided and double-sided M. 2 disks.
Better heat removal due to the coppered vents and thermally conductive pad.
Support of booting from an SSD card.
Dimensions 105 x 49 x 8 mm.
Weight 32 g.
The installation of drivers is not required.
Power supply:
The adapter is supplied directly from a PCI-Express bus; no external power supply is needed.
Supported operating systems:
MS Windows 7 / 8 / 8.1 / 10 /11, Windows Server 2008 R2 / 2012 / 2016 (all 32- and 64-bit versions ofWindows supported), and Linux with kernel 2.6. 31 and higher.
Note: When operating under Windows 7, contact the manufacturer of the M. 2 SSD to find whether this OS is supported,
Package contains:
PCI-Express adapter with a standard bracket,
low profile bracket,
thermally conductive pad,
mounting material and a screwdriver,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packaged in a cardboard.

interface
PCI-Express 3.0

number of lines
4-Lane (x4)

rate
8 GB/s bidirectionally (PCI-Express)

compatibility
PCI-Express 1.0a / 1.1 / 2.0 / 2.1 / 3.0

compatibility
x4 / x8 / x16 PCIe slot

Output

interface
NVMe M. 2 (PCI-Express)

connector
75-pin M. 2 M-key

compatibility
all NVMe M. 2 SSD

total permeability
8 GB/s theoretically (given by PCIe 3.0 4-Lane input)

Supported device

M. 2 22110
no

M. 2 2280
yes

M. 2 2260
yes

M. 2 2242
yes

M. 2 2230
yes

double-sided M. 2
yes

single-sided M. 2
yes

max. disk capacity
all, without limitations

Supported features

TRIM
yes

boot from connected disk
yes

automatic installation
yes

Plug and Play
yes

Other features

indication
red LED - computer connection (permanently on), data transmission (flashes)

Power supply

on the bus
yes (PCI-Express bus power)

OS support

MS Windows
11 / 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions)

MS Windows Server
2016 / 2012 / 2008 R2 (all 32- and 64-bit versions)

Linux
kernel 2.6. 31 and higher
