AXAGON PCEM2-S

PCEM2-S PCIe NVMe M. 2 adapter
PCI-Express x16 internal adapter to connect an NVMe M. 2 SSD to a desktop.

Input
PCI-Express, 4-Lane

Output
M. 2 NVMe

PC connection
x16 slot

Device support
M. 2 2230, M. 2 2242, M. 2 2260, M. 2 2280

Extra
passive cooler

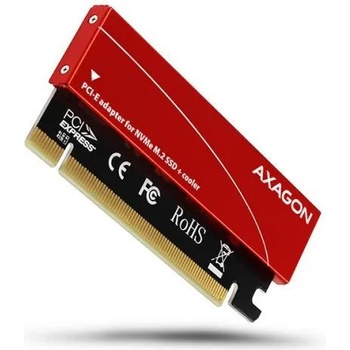

The internal AXAGON PCEM2-S adapter allows to connect the M. 2 SSD to a desktop coputer using PCI-Express bus.
High-qualityconstruction, compact dimensions, attractive design and sophisticatedcooling make the adapter an ideal choice for upgrading a desktopcomputer that is not equipped with any M. 2 slot.
Theadapter supports the use of both one-sided and double-sided NVMe(PCI-Express) M. 2 SSDs. The reduction does not limit SSD capacity, andany M. 2 cards with a size up to 22x80 mm can be used.
Thanks to PCI-Express interface, a maximum transmission rates can be achieved.
Thealuminum cover functioning as a cooler and the attached thermallyconductive pads help to cool the M. 2 SSD.   As a result, an idealcombination of M. 2 SSD cooling and heat discharging is achieved.
LED indicates either power on or data transfer in the M. 2 slot.
Input:
PCI-Express interface, compatible version PCI-Express: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a.
Number of 4-Lane lines compatible with x16 PCIe slots.
Output:
NGFF 75-pin M-key slot for the installation of NVMe (PCI-Express) of M. 2 SSD.
Other features:
Full Plug and Play support.
Support of M. 2 drives with a size of 2230, 2242, 2260, and 2280 mm.
Support of M-key or B+M-key NVMe (PCI-Express) M. 2 SSDs drives without limitation of maximum capacity.
Support of both one-sided and double-sided M. 2 drives.
A better heat discharge thanks to plated vents, thermally conductive pads and aluminum cover.
Support of booting from SSD card.
Dimensions 103 x 40 x 8 mm.
Weight 32 g.
No drivers need to be installed.
Power supply:
The adapter is directly supplied from PCI-Express bus; no external power supply is needed.
Supported operating systems:
MS Windows 7 / 8 / 8.1 / 10 /11, Windows Server 2008 R2 / 2012 / 2016 (all 32-bit as well as 64-bitversions of OS Windows are supported), Linux with kernel 2.6. 31 andhigher.
Note: When operating under Windows 7, contact the manufacturer of the M. 2 SSD to find whether this OS is supported.
Package contains:
PCIe adapter for M. 2 NVMe (PCI-Express) SSD with the aluminum cover,
3 thermally conductive pads,
mounting material and a screwdriver,
printed installation manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.

interface
PCI-Express 3.0

number of lines
4-Lane (x4)

rate
8 GB/s bidirectionally

compatibility
PCI-Express 1.0a / 1.1 / 2.0 / 2.1 / 3.0

compatibility
x16 PCIe slot

Output

interface
NVMe M. 2 (PCI-Express)

connector
75-pin M. 2 M-key

compatibility
all NVMe M. 2 SSD

total permeability
8 GB/s theoretically (given by PCIe 3.0 4-Lane input)

Supported device

M. 2 22110
no

M. 2 2280
yes

M. 2 2260
yes

M. 2 2242
yes

M. 2 2230
yes

double-sided M. 2
yes

single-sided M. 2
yes

max. disk capacity
all, without limitations

Supported features

TRIM
yes

boot from connected disk
yes

automatic installation
yes

Plug and Play
yes

Other features

indication
red LED - computer connection (permanently on), data transmission (flashes)

Power supply

on the bus
yes (PCI-Express bus power)

OS support

MS Windows
11 / 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions)

MS Windows Server
2016 / 2012 / 2008 R2 (all 32- and 64-bit versions)

Linux
kernel 2.6. 31 and higher
