AXAGON PCES-SJ2

PCES-SJ2 PCIe 2x SATA 6G controller
Two-channel SATA III PCI-Express controller with two internal SATA port outputs. Standard & Low profile.

Input
PCI-Express, 1-Lane

Output
SATA 6G

rate
up to 6 Gb/s

PC connection
x2 slot

design
standard profile, low profile

Extra
TRIM

The AXAGON PCES-SJ2 PCI-Express controller extends your desktop PC with two SATA ports with a transmission rate up to 6 Gb/s.
Thecard equipped with JMicron chipset not only supports SATA 3.0specification, but also other SATA technologies such as Hot-Plug, NativeCommand Queue (NCQ), TRIM, or Port Multiplier.
Easy installation without the need to install drivers in most operating systems.

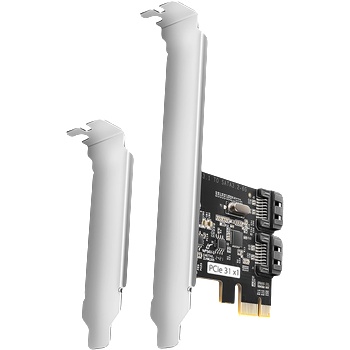

Thanks to the included low profile bracket the controller can be fitted into both standard and low profile PC cases.
Input:
PCI-Express 3.0 interface, PCI-Express 1.0a / 1.1 / 2.0 /2.1 compatible.
Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
A bandwidth of 1-Lane PCI-Express 3.0 bus 2 Gb/s bidirectional.
Output:
2x independent Serial ATA port, SATA III 6G standard.
2x internal 7-pin SATA data connector.
Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities.
Other features:
Full Plug and Play support.
Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s).
Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
Compliant with Serial ATA AHCI (Advanced Host Controller Interface) specification.
Hot Plug support for connecting and disconnecting SATA devices while running.
Native Command Queuing (NCQ) support.
TRIM feature support for SSD disks.
Port Multiplier Command Based Switching feature support.
Boot support from connected disk incl. cooperation with computer motherboard BIOS/UEFI.
The Jmicron JMB582 chipset is used.
Supported operating systems:
MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012/ 2016 / 2019 / 2022 and later (supported are all 32- and 64-bitversions of OS Windows), Linux with kernel 2.6. x and above.
Package contains:
PCI-Express Gigabit Ethernet card with a standard bracket,
low profile bracket,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU/ IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.

Input

interface
PCI-Express 3.0

number of lines
1-Lane (x1)

rate
6 Gbit/s

compatibility
PCI-Express 1.0a / 1.1 / 2.0 / 2.1

compatibility
x1/ x4 / x8 / x16 PCIe slot

Output

interface
Serial ATA

rate
6 / 3 / 1.5 Gbit/s (SATA III / SATA II / SATA I)

connector
2x internal 7-pin SATA data male

compatibility
all SATA I / SATA II / SATA III disks and drives

total permeability
2 Gbit/s

Supported features

TRIM
yes

boot from connected disk
yes

automatic installation
yes

NCQ
yes

Port Multiplier
yes

Plug and Play
yes

Hot Plug
yes

Other features

indication
2x LED

standard profile
yes

low profile
yes

chipset
JMicron

OS support

MS Windows
11 / 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions)

MS Windows Server
2022 / 2019 / 2016 / 2012 / 2008 (all 32- and 64-bit versions)

Linux
kernel 2.6. x and higher
