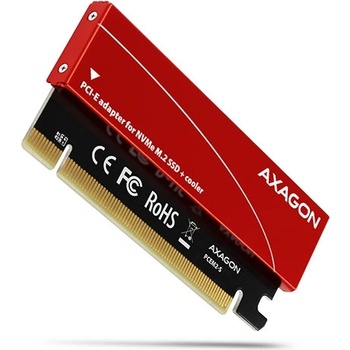

AXAGON PCI-E 16x Card, 1x PCIe M. 2 SSD, AXAGON PCEM2-S (PCEM2-S)

PCEM2-S PCIe NVMe M. 2 adapter PCI-Express x16 internal adapter to connect an NVMe M. 2 SSD to a desktop. Input PCI-Express, 4-Lane Output M. 2 NVMe PC connection x16 slot Device support M. 2 2230, M. 2 2242, M. 2 2260, M. 2 2280 Extra passive cooler The internal AXAGON PCEM2-S adapter allows to connect the M. 2 SSD to a desktop coputer using PCI-Express bus. High-quality construction, compact dimensions, attractive design and sophisticated cooling make the adapter an ideal choice for upgrading a desktop computer that is not equipped with any M. 2 slot. The adapter supports the use of both one-sided and double-sided NVMe (PCI-Express) M. 2 SSDs. The reduction does not limit SSD capacity, and any M. 2 cards with a size up to 22x80 mm can be used. Thanks to PCI-Express interface, a maximum transmission rates can be achieved. The aluminum cover functioning as a cooler and the attached thermally conductive pads help to cool the M. 2 SSD. As a result, an ideal combination of M. 2 SSD cooling and heat discharging is achieved. LED indicates either power on or data transfer in the M. 2 slot. Input: PCI-Express interface, compatible version PCI-Express: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a. Number of 4-Lane lines compatible with x16 PCIe slots. Output: NGFF 75-pin M-key slot for the installation of NVMe (PCI-Express) of M. 2 SSD. Other features: Full Plug and Play support. Support of M. 2 drives with a size of 2230, 2242, 2260, and 2280 mm. Support of M-key or B+M-key NVMe (PCI-Express) M. 2 SSDs drives without limitation of maximum capacity. Support of both one-sided and double-sided M. 2 drives. A better heat discharge thanks to plated vents, thermally conductive pads and aluminum cover. Support of booting from SSD card. Dimensions 103 x 40 x 8 mm. Weight 32 g. No drivers need to be installed. Power supply: The adapter is directly supplied from PCI-Express bus; no external power supply is needed. Supported operating systems: MS Windows 7 / 8 / 8.1 / 10/11, Windows Server 2008 R2 / 2012 / 2016 (all 32-bit as well as 64-bit versions of OS Windows are supported), Linux with kernel 2.6. 31 and higher. Note: When operating under Windows 7, contact the manufacturer of the M. 2 SSD to find whether this OS is supported. Package contains: PCIe adapter for M. 2 NVMe (PCI-Express) SSD with the aluminum cover, 3 thermally conductive pads, mounting material and a screwdriver, printed installation manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box. interface PCI-Express 3.0 number of lines 4-Lane (x4) rate 8 GB/s bidirectionally compatibility PCI-Express 1.0a / 1.1 / 2.0 / 2.1 / 3.0 compatibility x16 PCIe slot Output interface NVMe M. 2 (PCI-Express) connector 75-pin M. 2 M-key compatibility all NVMe M. 2 SSD total permeability 8 GB/s theoretically (given by PCIe 3.0 4-Lane input) Supported device M. 2 22110 no M. 2 2280 yes M. 2 2260 yes M. 2 2242 yes M. 2 2230 yes double-sided M. 2 yes single-sided M. 2 yes max. disk capacity all, without limitations Supported features TRIM yes boot from connected disk yes automatic installation yes Plug and Play yes Other features indication red LED - computer connection (permanently on), data transmission (flashes) Power supply on the bus yes (PCI-Express bus power) OS support MS Windows 11 / 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions) MS Windows Server 2016 / 2012 / 2008 R2 (all 32- and 64-bit versions) Linux kernel 2.6. 31 and higher
