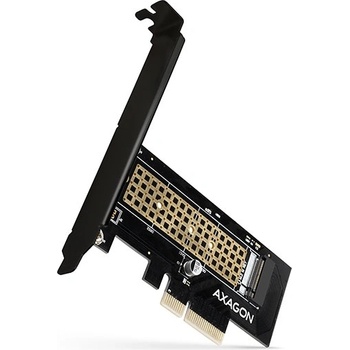

AXAGON PCI-E Card, M. 2 NVMe, Cooler, AXAGON PCEM2-N (PCEM2-N)

PCEM2-N PCIe NVMe M. 2 adapter The PCI-Express x4 internal adapter for connecting an NVMe M. 2 SSD disk to a computer. Input PCI-Express, 4-Lane Output M. 2 NVMe PC connection x4 slot, x8 slot, x16 slot Device support M. 2 2230, M. 2 2242, M. 2 2260, M. 2 2280 design standard profile The AXAGON PCEM2-N internal adapter allows connecting an M. 2 SSD disk to a desktop computer using a PCI-Express bus. High-quality construction, compact size, and well thought-out design make the adapter an ideal choice for upgrading a desktop computer that is not equipped with an M. 2 slot. The adapter supports the use of NVMe (PCI-Express) M. 2 SSD disks, both one-sided and double-sided ones. The reduction does not have a limit of SSD disk capacities and M. 2 cards with a size of up to 22x80 mm can be used. Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved. The thermally conductive pad and coppered vents help to remove better heat generated during the operation of M. 2 SSD disks. The LED indication indicate either connection or data transfer in the M. 2 slot. The package also contains a low profile bracket for mounting the adapter into low profile cases. Input: PCI-Express interface, compatible version PCI-Express: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a. Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots. Output: NGFF 75-pin M-key slot to install an NVMe (PCI-Express) M. 2 SSD disk. Other features: Full Plug and Play support. Support of M. 2 disks with the sizes – 2230, 2242, 2260, 2280 mm. Support of M key or B+M key NVMe (PCI-Express) M. 2 SSD disks without a maximum capacity limit. Support of both one-sided and double-sided M. 2 disks. Better heat removal due to the coppered vents and thermally conductive pad. Support of booting from an SSD card. Dimensions105 x 49 x 8 mm. Weight 32 g. The installation of drivers is not required. Power supply: The adapter is supplied directly from a PCI-Express bus; no external power supply is needed. Supported operating systems: MS Windows 7 / 8 / 8.1 / 10/11, Windows Server 2008 R2 / 2012 / 2016 (all 32- and 64-bit versions of Windows supported), and Linux with kernel 2.6. 31 and higher. Note: When operating under Windows 7, contact the manufacturer of the M. 2 SSD to find whether this OS is supported, Package contains: PCI-Express adapter with a standard bracket, low profile bracket, thermally conductive pad, mounting material and a screwdriver, printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packaged in a cardboard. interface PCI-Express 3.0 number of lines 4-Lane (x4) rate 8 GB/s bidirectionally (PCI-Express) compatibility PCI-Express 1.0a / 1.1 / 2.0 / 2.1 / 3.0 compatibility x4 / x8 / x16 PCIe slot Output interface NVMe M. 2 (PCI-Express) connector 75-pin M. 2 M-key compatibility all NVMe M. 2 SSD total permeability 8 GB/s theoretically (given by PCIe 3.0 4-Lane input) Supported device M. 2 22110 no M. 2 2280 yes M. 2 2260 yes M. 2 2242 yes M. 2 2230 yes double-sided M. 2 yes single-sided M. 2 yes max. disk capacity all, without limitations Supported features TRIM yes boot from connected disk yes automatic installation yes Plug and Play yes Other features indication red LED - computer connection (permanently on), data transmission (flashes) Power supply on the bus yes (PCI-Express bus power) OS support MS Windows 11 / 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions) MS Windows Server 2016 / 2012 / 2008 R2 (all 32- and 64-bit versions) Linux kernel 2.6. 31 and higher
