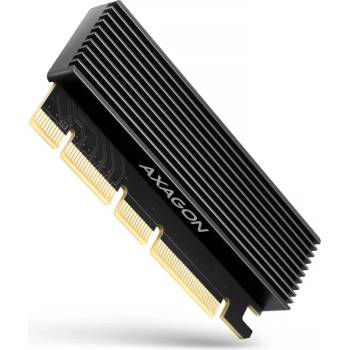

AXAGON PCIe x4 NVMe M. 2 adapter (PCEM2-XS)

The AXAGON PCEM2-XS internal adapter allows connecting an NVMe M. 2 SSD disk to a desktop computer using a PCI-Express bus. Its high-quality workmanship, compact size, attractive design, and and sophisticated cooling make this adapter an ideal choice for upgrading a desktop computer not equipped with an M. 2 slot. The adapter supports the use of single-sided and double-sided NVMe (PCI-Express) M. 2 SSD drives. The reduction does not have a limit of SSD disk capacities and M. 2 cards with dimensions of up to 22x80 mm can be used. Thanks to the PCI-Express interface, it is possible to achieve maximum transfer speeds. The LED indication indicates connection or data transfer in the M. 2 slot. The adapter is equipped with a ribbed aluminum disc cover that serves as a passive heatsink. Thanks to the large cooling surface and supplied thermal pads, the cooler dissipates heat from both sides of the M. 2 disk and thus achieves maximum cooling efficiency. This makes it ideal even for demanding PCIe 5.0 NVMe SSDs. Input: PCI-Express interface, compatible PCI-Express versions: 5.0 / 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a. Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots. Output: NGFF 75-pin M-key slot to install an NVMe (PCI-Express) M. 2 SSD disk. Other features: Full Plug and Play support. Support of M. 2 disks of these sizes – 2230, 2242, 2260, and 2280 mm. Support of M key or B+M key NVMe (PCI-Express) M. 2 SSD disks without a maximum capacity limit. Support of both one-sided and double-sided M. 2 disks. Better heat dissipation due to the coppered vents, heat-conductive pads, and aluminium cooler. Support of booting from an SSD card. Dimensions: 105 x 45 x 12 mm. Weight 50 g. No drivers need to be installed.
