AXAGON RHD-225

RHD-225L 2x 2.5" > 3.5" reduction

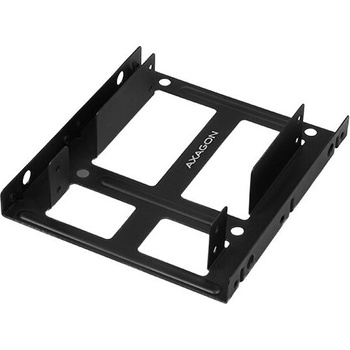

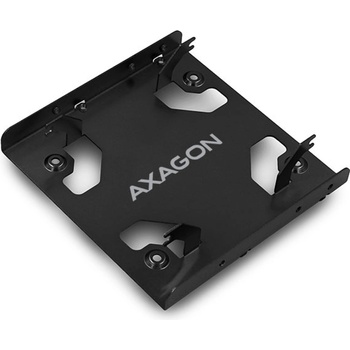

Aluminum frame for mounting two 2.5" disks into one 3.5" position.

Device support
2.5" HDD / SSD

design
internal, metal casing

The AXAGON RHD-225L aluminum frame for mounting two 2.5" HDDs or SSDs in one 3.5" position of the PC housing.
This can provide an easy solution for an internal disk array in compact computers.
Both standard 7mm SSDs and 9.5mm hard disks can be used.
Both light and resistant aluminum structure helps to cool SSDs / HDDs.
Precise holes for mounting the drive and frame in the housing will make their installation easy and flawless.
Features:
Support of 2x 2.5" SSDs or hard disks up to a height of 9.5 mm.
The frame dimensions and mounting holes correspond to the standard 3.5"position of the PC housing.
The frame is made of an Al-section and coated with black coating applied by spraying.
Outside dimensions of the frame 101 x 100 x 23 mm (W x D x H).
Weight 30 g.
Package contains:
a frame for two 2,5 disks,
screws for disk and frame mounting,
packed in a cardboard box.

Supported device

2.5"
yes (1 or 2 HDD/SSD)

3.5"
no

5.25"
no

Other features

design
metal

design
internal (to 3.5" position)

dimensions
101 x 100 x 23 mm

weight
30 g
