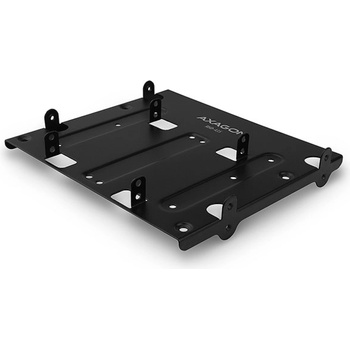

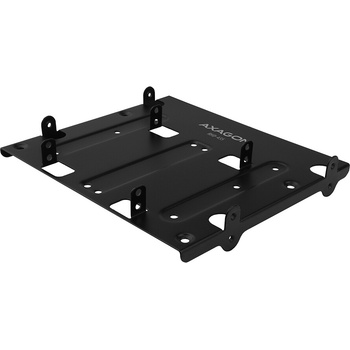

AXAGON RHD-435

RHD-435 5.25" reduction for 4x 2.5" or 2x 2.5" + 1x 3.5"
Metal frame for mounting four 2.5" disks or two 2.5" disks and one 3.5" disk in a 5.25" position.

PC connection
5.25" pozice

Device support
2.5" HDD / SSD, 3.5" HDD

design
internal, metal casing

TheAXAGON RHD-435 metal frame for mounting up to four 2.5" HDD / SSD orfor mount two 2.5" and one 3.5" drives into 5.25" position of the PCcase.
Thisreduction cleverly solves the problem of placing 2.5" or 3.5" disks indifferent types of computer cases. In the upper position, standard 7 mmSSD and 9.5 mm HDD 2.5" drives can be used. The lower position is for astandard 3.5" hard disk alternatively for 2.5" SSD / HDD without diskheight limitation.
Preciseholes and supplied screws ensure easy and trouble-free frameinstallation into the computer case. The metal structure and frameprofile help dissipate the heat from the disk.
Features:
Supports 4x 2.5" SSD or HDD up to 7 and 9.5 mm height.
Supports 1x 3.5" HDD or 2x 2.5" SSD or HDD any disk height.
The frame dimensions and mounting holes correspond to the standard 5.25" position of the PC case.
The frame is made from a steel sheet and painted black.
Outside dimensions of the frame 146 x 130 x 28 mm, weight 130 g.
Package contains:
Frame for 4x 2.5" disks or 2x 2.5" + 1x 3.5" disks,
screws and mounting material for mounting the disks and frame,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR /GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN /ARA,
packed in a cardboard box with a hanging hole.

Supported device

2.5"
1 - 4 HDD/SSD

3.5"
1 HDD

5.25"
-

Other features

design
metal

design
to 5.25" position

dimensions
146 x 130 x 28 mm

weight
130 g
