AXAGON RHD-P25

RHD-P25 3.5" / PCI reduction for 2x 2.5"
Metal frame for mounting two 2.5" disks in a 3.5" position or PCI bracket.

PC connection
3.5" pozice, PCI / PCIe positions

Device support
2.5" HDD / SSD

design
internal, metal casing

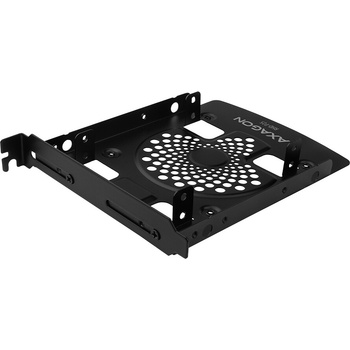

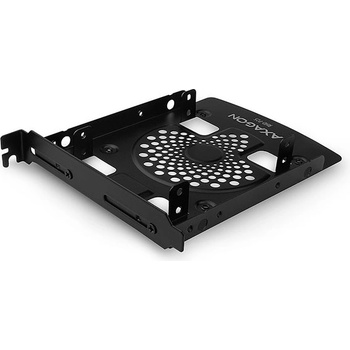

TheAXAGON RHD-P25 aluminum frame for mounting two 2.5" HDD or SSD drivesinto one 3.5" position of the PC case. Removable bracket allow mountinginto free PCI position.
Thisreduction cleverly solves the problem of placing 2.5" disks indifferent types of computer cases. Standard 7 mm SSD disks and also 9.5mm hard disks can be used.
Preciseholes and supplied screws ensure easy and trouble-free frameinstallation into the computer case. The possibility of mounting in bothPCI and 3.5" positions makes the adapter a universal accessory. Toenhance disk cooling, the frame is ready for installation of an extrafan.
Features:
Supports 2x 2.5" SSD or HDD up to 9.5 mm height.
The frame without bracket for mounting into the standard 3.5" position of the PC case.
The frame with bracket for mounting into PCI/PCIe position of the PC case.
The frame is made from aluminum profile and painted black.
The prepared 80 mm fan mounting holes on the frame bottom (the fan is not included).
Outside dimensions of the frame 102 x 136 x 19 mm, weight 38 g.
Package contains:
Frame for two 2.5" disks,
bracket for frame mounting into PCI position,
screws for mounting the disks and frame,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR /GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN /ARA,
packed in a cardboard box with a hanging hole.

Supported device

2.5"
1 - 2 HDD/SSD

3.5"
-

5.25"
-

Other features

design
metal

design
to PCI/PCIe position

design
to 3.5" position

dimensions
136 x 102 x 19 mm

weight
38 g
