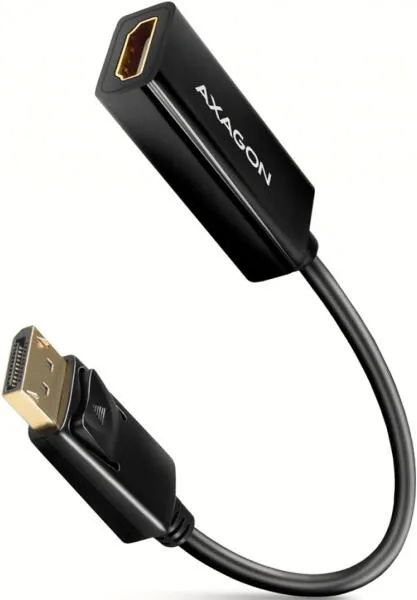

AXAGON RVD-HI14N

RVD-HI14N DP > HDMI adapter 4K/30Hz
Active adapter for connecting HDMI display to DisplayPort output. Support 4K/30Hz.

Input
DisplayPort

Output
HDMI

PC connection
DP M, permanently connected cable, cable 15 cm

Device support
up to 4K / 30Hz

Power supply
on the bus

DisplayPort-> HDMI active adapter AXAGON RVD-HI14N to connect HDMImonitor/TV/projector to the computer with the DisplayPort output.
Thesmart hardware converter without the need for any installation or setupensures high-quality transfer of image and sound with a resolution upto 4K/30Hz.
Videoand audio transfer from a computer or laptop will now be easy. Compactdimensions ensures easy use even in insufficient space. This is aconvenient solution if you already own an HDMI cable - you only add areducer.
The adapter is only one-way, i. e. DisplayPort to HDMI, not otherwise.
Input:
DisplayPort v1.2
DP male connector with latch (M)
connector latch control button
Output:
HDMI v1.4b
HDMI A (F) female connector
Supported resolutions:
Resolution and frequency depend on monitor, graphics adapter and also cable.
max. 4096 x 2160 (19:10) @30Hz DCI 4K
3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)
3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
2560 x 2048 (5:4) QSXGA
2560 x 1920 (4:3)
2560 x 1600 (16:10) WQXGA
2560 x 1440 (16:9) @60Hz WQHD
2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
2048 x 1536 (4:3) QXGA
2048 x 1152 (16:9) QWXGA
1920 x 1440 (4:3)
1920 x 1200 (16:10) WUXGA
1920 x 1080 (16:9) @60, 75, 100 a 120Hz Full HD/1080p
1856 x 1392 (4:3)
1792 x 1344 (4:3)
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1536 x 864 (16:9)
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) HD
1360 x 768 (16:9) HD
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
Other features:
sound transfer support
DDC (Display Data Channel) support - Intelligent setting ofresolution, frequency and other parameters according to the sourcegraphics chip
supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area
HPD (Hot-Plug-Detect) support - communication sequence controlling the connection/disconnection of the device while running
HDCP 1.4 and 2.2
support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV)
power supply via bus - no external power is needed
gold-plated connectors for perfect contact and oxidation limitation
adapter dimensions 45 x 21 x 12 mm
total cable length incl. connector 18 cm
weight only 24 g
Supported operating systems:
All versions of MS Windows, Mac OS X, Linux and other operating systems.
It is a pure hardware converter, the transfer is provided only by theadapter chip without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.
Package contains:
DisplayPort > HDMI adapter,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR /GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN /ARA,
packed in a cardboard box.

Input

interface
DisplayPort v1.2

connector
DP male on the cable

cable
15 cm

Output

interface
HDMI v1.4b

connector
HDMI A female

Supported features

max. resolution
4096 x 2160 @30Hz 4K x 2K

display modes
mirroring / extending the primary monitor area

sound transmission
yes

automatic installation
yes

energy saving
yes (computer- and display-controlled sleeping)

Display Data Channel
yes (DDC - automatic setting of monitor parameters according to the graphic chip)

Hot Plug Detect
yes (HPD - connecting / disconnecting device when running)

Plug and Play
yes

Hot Plug
yes

Other features

dimensions
45 x 21 x 12 mm

weight
24 g

Power supply

on the bus
yes (DP bus power)

OS support

MS Windows
all versions

MS Windows Server
all versions

Mac OS
all versions

Linux
all versions

Chrome
all versions
