AXAGON RVH-VGN

RVH-VGN HDMI > VGA adapter
Active converter for connecting VGA display to PC with HDMI output.

Input
HDMI

Output
VGA

PC connection
HDMI M, permanently connected cable, cable 15 cm

Device support
up to 1920 x 1200

Power supply
on the bus

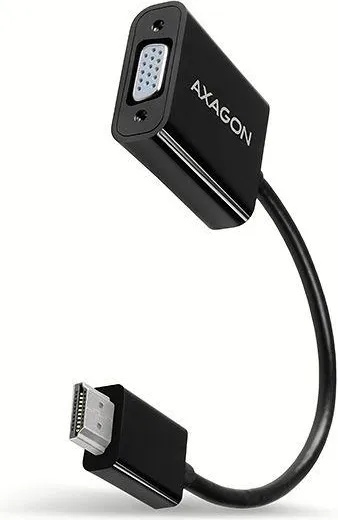

HDMI-> VGA active adapter AXAGON RVH-VGN for connecting an older VGAmonitor / TV / projector to a computer or other device with HDMI output. It can also be used with set-top boxes or Xbox and PlayStationconsoles.
Withoutany installation or setup, the hardware converter ensures imagetransfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.
The innovative design of the adapter electronics ensures high-quality clear and sharp images.
The reduction is only one-way, i. e. HDMI to VGA converter, not the opposite way.
Input:
HDMI v1.4b digital interface
HDMI A (M) male
Output:
Analog VGA interface
D-Sub 15-pin (F) female connector
Supported resolutions:
max. 1920x1200 (16:10) WUXGA
1920 x 1080 (16:9) Full HD/1080p
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) WXGA
1360 x 768
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
640 x 480 (4:3) VGA
576i/576p PAL
480i/480p NTSC
Note: The resolution depends on the monitor / TV / projector and graphic adapter parameters.
Other features:
HDCP 1.4 copy protection support for video and audio content,
supported modes: mirroring the primary monitor's desktop, extending the primary monitor's desktop, and more,
charging from HDMI input - no external power needed,
Compact dimensions 42 x 38 x 16 mm,
Cable length approx. 17 cm,
Weight 27g,
Operating temperature: 0 ~ 40°C,
Storage temperature: -20 ~ 85°C.
Supported OSs:
All versions of MS Windows, Mac OS X, Linux, Android, Chrome and other operating systems.
This is a purely hardware converter, the conversion is provided by theadapter chip without computer participation, no drivers need to beinstalled, so compatibility is not dependent on your operating system.
Package contains:
HDMI > VGA converter,
printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR /HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.

Input

interface
HDMI v1.4b

connector
HDMI A male on the cable

cable
15 cm, permanently connected

Output

interface
VGA

connector
D-Sub 15-pin female

Supported features

max. resolution
1920 x 1200 WUXGA

display modes
mirroring / extending the primary monitor area

sound transmission
no

automatic installation
yes

Other features

dimensions
42 x 38 x 16 mm

weight
27 g

Power supply

on the bus
yes (HDMI bus power)

through power adapter
no

OS support

MS Windows
all versions

MS Windows Server
all versions

Mac OS
all versions

Linux
all versions

Android
all versions

Chrome
all versions
