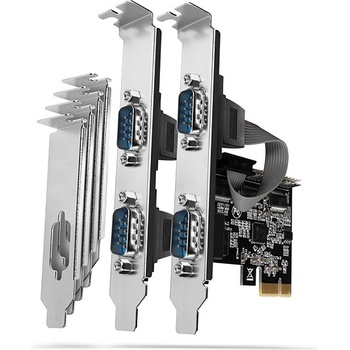

AXAGON Serial card RS232, PCI-E, 4xCom port, AXAGON PCEA-S4N (PCEA-S4N)

PCEA-S4N PCIe controller 4x serial PCI-Express card with four serial ports 250 kbps. ASIX AX99100. Standard & Low profile. Input PCI-Express, 1-Lane Output DB9 M, serial port, 4-port output PC connection x1 Slot design standard profile, low profile The AXAGON PCEA-S4N PCI-Express card extends your desktop PC by four RS-232 serial ports with DB-9 connectors. High performance, seamless compatibility and wide port options are ensured by proven ASIX chipset. Included low profile brackets allow controller installation into standard and also low profile PC-cases. Input: PCI-Express 2.0 interface compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0. Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots. The bandwidth of 1-Lane PCI-Express 2.0 bus 5 Gb/s. Output: 4x serial RS-232 port with DB9 male connectors, the ports are placed on the card’s bracket + on separate bracket connected to card via cable. Guaranteed data flow of used RS232 drivers up to 250 kBd. Compatible with 16C550 / Extended 16C550 / 16C950 UART. Other features: Plug and Play Support - automatic selection of IRQ and I/O address. 256-Byte transmit & receive FIFO buffer for each port. Serial port baud rate setting. Adjustable word length 5, 6, 7, 8 or 9 bits. Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits. Adjustable flow control Xon/Xoff, hardware or none. The COM port number change. Advanced 9-bit data transfer settings and custom baud rate settings. Supports TXD, RXD, RTS, CTS, DTR, DCD, DSR, and RI serial signals. Serial port electrostatic discharge (ESD) protection exceeding ±15KV Air Gap Discharge and ±8KV Contact Discharge. Supports connecting serial devices such as ATMs, cash registers, barcode readers, CNC machines, tablets, modems, POSs or PDAs. The ASIX AX99100 chipset is used. Supported operating systems: MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported all 32 and 64-bit Windows OS versions), with kernel 2.6. 11 and above. Package contains: PCI-Express card with a standard bracket, standard bracket with serial ports, low profile brackets, multilingual guide Z / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box. interface PCI-Express 2.0 number of lines 1-Lane (x1) rate 5 Gbit/s compatibility PCI-Express 1.0a / 1.1 / 2.1 / 3.0 compatibility x1 / x4 / x8 / x16 PCIe slot Output interface serial RS-232 rate max. 250 kbit/s number of ports 4 connector 4x DB9 male compatibility UART 16C950 / Extended 16C550 / 16C550 Supported features adjustable flow control Xon / Xoff, Hardware, None adjustable word length 5 / 6 / 7 / 8 / 9 b adjustable parity Even, Odd, None, Mark, Space / 1, 1.5, 2 stop bits Plug and Play yes Other features buffer yes (FIFO sending 256B / receiving 256B for every port) standard profile yes low profile yes chipset ASIX AX99100 Power supply on the bus PCI-Express bus power OS support MS Windows 10 / 8.1 / 8 / 7 / Vista / XP MS Windows Server 2016 / 2012 / 2008 / 2003 Linux kernel 2.6. 11 and higher
