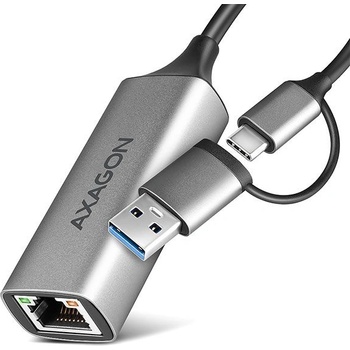

AXAGON USB3-A/C to Giga ETHERNET, AXAGON ADE-TXCA (ADE-TXCA)

ADE-TXCA USB-C + USB-A gigabit ethernet adapter
Compact aluminum USB 3.2 Gen 1 Gigabit Ethernet 10/100/1000Mbitadapter with automatic installation, Nintendo Switch support and USB C-Areduction.

Input
USB 3.2 Gen 1

Output
Ethernet

rate
10/100/1000 Mbit/s

PC connection
USB-C -> USB-A redukce, USB type C-M, permanently connected cable, cable 15 cm

design
metal casing

Extra
Nintendo Switch podpora, Wake on LAN

Theexternal network card AXAGON ADE-TXCA easily converts USB-C or USB-A3.2 Gen 1 port to Gigabit Ethernet port. Thanks to the cable with USB-Cconnector, on which the USB-C -> USB-A reduction is attached, you canconnect the Ethernet adapter to any computer, tablet or phone. USBnetwork adapter compatible with 10/100/1000 Mbit/s expands the computerwith a fast and stable network connection, adds the missing RJ-45network connector, adds another network card, or replaces the originalnon-functional network connection.
Inaddition to gigabit throughput, the LAN adapter offers a wide range offeatures such as IPv4/IPv6 checksum to reduce CPU load by checksums, thecrossover detection and auto-correction, TCP large send offload, support for various modes of the Wake-on-LAN feature, the work with VLANand advanced Power Management features.
Themetal adapter cover is made of aluminum and provides perfect mechanicalprotection and excellent heat dissipation. Due to its minimaldimensions and weight, it is an ideal accessory for laptops and othermobile devices. The support for current versions of Windows, macOS, andLinux, Chrome or Android operating systems allows it to be used for anydesktop, laptop or ultrabook equipped with a modern double-sided USBType C connector or a classic USB-A connector. In Windows from version8.1 and above, the adapter enables easy automatic installation withoutthe need for an Internet connection. The Ethernet adapter will also beused by users of tablets or mobile phones supporting the possibility of awired Ethernet connection. In addition, thanks to the chip used, theadapter is also supported by the operating system of Nintendo Switchgame consoles.
Input:
USB 5Gbps (USB 3.2 Gen 1 / USB 3.0).
Backward compatible with USB 480Mbps (USB 2.0) and USB 1.1.
Compatible with Thunderbolt 3 and 4.
Connection to a computer, mobile phone or tablet via a USB-C maleconnector or with a connected adapter via a USB-A male connector.
Output:
Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
10/100/1000 Mb/s auto-detection.
Supports IPv4 / IPv6 packet Checksum Offload Engine (COE) to reduceprocessor load, including IPv4 IP/TCP/UDP/ICMP/ IGMP & IPv6TCP/UDP/ICMPv6 checksum control and generation.
Supports TCP Large Send Offload V1 and V2.
Supports IEEE 802.1P Layer 2 priority encoding & decoding.
Supports IEEE 802.1Q VLAN tagging.
Supports IEEE 802.3az EEE (Energy Efficient Ethernet) - reduce power consumption at rest.
Supports IEEE 1588/802.1AS Timestamping – precise time synchronization HW support.
Supports Jumbo frame.
Supports Auto MDI/MDIX - crossover detection and auto-correction eliminates the need for crossover cables.
Other features:
Full Plug and Play and Hot Plug support.
Supports CDC-ECM – for automatic installation of drivers across different OSs.
CDC-NCM support - for native support without driver installation in iOS/iPadOS/macOS/Linux.
Adapter power supply via USB (bus power) - no auxiliary power supply required.
Two LEDs to indicate network activity and the adapter's connection to the network.
Dimensions 76 x 24 x 16 mm.
Weight 34 g (incl. cable and reduction).
USB cable length 15 cm.
ASIX AX88179A chipset is used.
Wake-on-LAN feature support in different modes:
Supports sleep mode and remote Wake Up via Magic Packet, Microsoft Wakeup Frame and Link Change Wake-up.
Supports Bonjour wake-on-demand.
Supports Wakeup Packet Indication.
Supports Microsoft Modern Standby.
Advanced Power Management features:
The adapter supports advanced power management to reduce losses duringstandby or light traffic on the network. It further supports advancedpower saving when the Ethernet cable has been disconnected.
Supports Power Management offload (ARP & NS).
Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage thenetwork connection of sleeping guests using proxy servers.
Supported operating systems:
Windows, macOS, iPadOS, iOS, Linux, Chrome OS, Nintendo Switch systemsoftware and Android (WARNING - check with the Android devicemanufacturer if the Ethernet connection is supported).
Package contains:
USB - Gigabit Ethernet adapter with fixed 15 cm long USB-C cable and USB-C / USB-A reduction,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU/ IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
packed in a cardboard box with a hanging hole.

interface
USB 3.2 Gen 1 / USB 3.0 / USB 2.0

rate
5000 / 480 / 12 Mbit/s (super / high / full speed)

connector
USB-C -> USB-A redukce

connector
USB Type C male on the cable

cable
15 cm, permanently connected

Output

interface
Ethernet

rate
10/100/1000 Mbit/s

connector
RJ-45

compatibility
IEEE 802.3 10Base-T

compatibility
IEEE 802.3ab 1000Base-T

compatibility
IEEE 802.3u 100Base-TX

Supported features

bandwidth management
yes (IEEE 802.1P Layer 2 priority encoding & decoding)

Virtual LAN
yes (IEEE 802.1Q VLAN tagging)

Wake on LAN
yes (incl. AMD Magic Packet, Microsoft Wake-up frame)

Plug and Play
yes

Hot Plug
yes

Other features

indication
LED

chipset
ASIX AX88179A

dimensions
76 x 24 x 16 mm

weight
34 g

Power supply

on the bus
yes (USB bus power)

OS support

Nintendo Switch system software
yes

iPadOS
yes

iOS
yes

MS Windows
yes

Mac OS
yes

Linux
yes

Android
yes ( ! - check support with Android device manufacturer)

Chrome
yes
