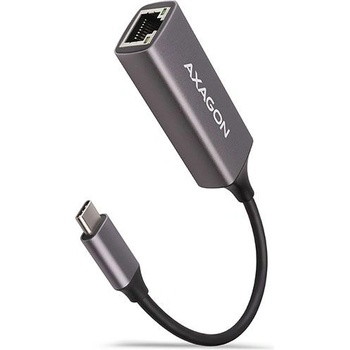

AXAGON USB3-C to Giga ETHERNET , alum, AXAGON ADE-TRC (ADE-TRC)

ADE-TRC SuperSpeed USB-C gigabit ethernet
Compact aluminum USB-C 3.2 Gen 1 Gigabit Ethernet 10/100/ 1000Mbit adapter with automatic installation.

Input
USB 3.2 Gen 1

Output
Ethernet

rate
10/100/1000 Mbit/s

PC connection
USB type C-M, permanently connected cable, cable 15 cm

design
metal casing

Extra
Wake on LAN

The external network card AXAGON ADE-TRC easily converts USB-C 3.2 Gen 1 port to Gigabit Ethernet port.
Itis compatible with 10/100/1000 Mbit/s transfer speeds. The Gigabitnetwork adapter expands the computer with a fast and stable networkconnection, adds the missing RJ-45 network connector, adds anothernetwork card, or replaces the original non-functional networkconnection.
Thenetwork card with Gigabit bandwidth offers a wide range of features, such as IPv4/IPv6 checksum to reduce CPU load by checksums, thecrossover detection and auto-correction, TCP large send offload, supportfor various modes of the Wake-on-LAN feature, the work with virtual LAN(VLAN) and advanced Power Management features.
Themetal adapter cover is made of aluminum and provides perfect mechanicalprotection and excellent heat dissi-pation. Thanks to its compactdimensions and minimal weight, it is an ideal accessory for laptops. Thesupport for current versions of Windows, Mac OS X, and Linux operatingsystems allows it to be used for any desktop, laptop or ultrabook.
Inmodern operating systems from Windows 8.1 above, the adapter allowseasy automatic installation without the need for an Internet connection. Also some phones and tablets with the Android operating system, such asthe Sam-sung S9 +, can be connected to the Internet with a networkEthernet cable thanks to this adapter.
Input:
1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-C male connector.
Backward compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0.
Compatible with Thunderbolt 3 interface.
Supports transmission rates 5.000 / 480 / 12 / 1.5 Mb/s (SuperSpeed / High / Full / Low speed).
Connecting USB type C male connector on a 15 cm long permanently attached cable.
Output:
Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
10/100/1000 Mbit/s auto-detection.
Supports IPv4 / IPv6 packet Checksum Offload Engine (COE) to reduce processor load, including IPv4 IP/TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6 checksum control and generation.
Supports TCP Large Send Offload V1 and V2.
Supports IEEE 802.1P Layer 2 priority encoding & decoding.
Supports IEEE 802.1Q VLAN tagging.
Supports IEEE 802.3az EEE (Energy Efficient Ethernet) - reduce power consumption at rest.
Supports Jumbo frame.
Supports full-duplex transmissions with IEEE 802.3x flow control andhalf-duplex transmissions with back-pressure flow control.
Supports Auto MDI/MDIX - crossover detection and auto-correction eliminates the need for crossover cables.
Supports hardware Cyclic Redundancy Check (CRC) to detect transmission errors.
Supports Pair Swap/Polarity/Skew Correction.
Other features:
Full Plug and Play and Hot Plug support.
Supports CDC-ECM – for automatic installation of drivers across different OSs.
Adapter power supply via USB (bus power) - no auxiliary power supply required.
Two LEDs indicate the network activity and connection of the adapter to the USB and network.
Dimensions 59 x 24 x 16 mm.
Weight 26 g (incl. cable).
USB cable length 15 cm.
The Realtek RTL8153 chipset is used.
Wake-on-LAN feature support in different modes:
Supports sleep mode and remote Wake Up via Magic Packet, MicrosoftWakeup Frame, Microsoft Wake Packet Detection and Link Change Wake-up.
Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage thenetwork connection of sleeping guests using proxy servers.
RealWoW! technology support allows remote wake up over the Internet.
Advanced Power Management features:
The adapter supports advanced power management to reduce losses duringstandby or light traffic on the network. It further supports advancedpower saving when the Ethernet cable has been disconnected.
Supports Advanced Configuration Power Management Interface (ACPI).
Supports Power Management offload (ARP & NS).
Supports Microsoft Always On Always Connected (AOAC).
Supports Intel Converged Platform Power Management (CPPM).
Supports Link Power Management (LPM).
Supports Operating System-directed Power Management (OSPM).
Supports IEEE 802.3az EEE (Energy Efficient Ethernet).
Supported OS:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server2003 / 2008 / 2012 / 2016 and later (supported are all 32 and 64-bitversions of Windows OSs), MacOS X 10.6 and later, Linux with kernel2.6. 14 and later, Android most versions (WARNING - check with theAndroid device manufacturer if the Ethernet connection is supported).
Package contains:
USB - Gigabit Ethernet adapter with fixed 15 cm long USB-C cable,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR /GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN /ARA,
packed in a cardboard box with a hanging hole.

interface
USB 3.2 Gen 1 / USB 3.0 / USB 2.0

rate
5000 / 480 / 12 Mbit/s (super / high / full speed)

connector
USB Type C male on the cable

cable
15 cm, permanently connected

Output

interface
Ethernet

rate
10/100/1000 Mbit/s

connector
RJ-45

compatibility
IEEE 802.3ab 1000Base-T

compatibility
IEEE 802.3u 100Base-TX

compatibility
IEEE 802.3 10Base-T

Supported features

bandwidth management
ano (IEEE 802.1P Layer 2 priority encoding & decoding)

Virtual LAN
yes (IEEE 802.1Q VLAN tagging)

Wake on LAN
yes (incl. AMD Magic Packet, Microsoft Wake-up frame)

Plug and Play
yes

Hot Plug
yes

Other features

indication
green LED - connection to the network (permanently on)

indication
orange LED - data transmission (flashes)

chipset
Realtek RTL8153

dimensions
59 x 24 x 16 mm

weight
26 g

Power supply

on the bus
yes (USB bus power)

OS support

MS Windows
10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions)

MS Windows Server
2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions)

Mac OS
X 10.6 and higher

Linux
kernel 2.6. 14 and higher

Android
all versions ( ! - verify support at the Android device manufacturer)
