AXAGON USB3-C to Giga ETHERNET , AXAGON ADE-MINIC (ADE-MINIC)

ADE-MINIC USB-C gigabit ethernet

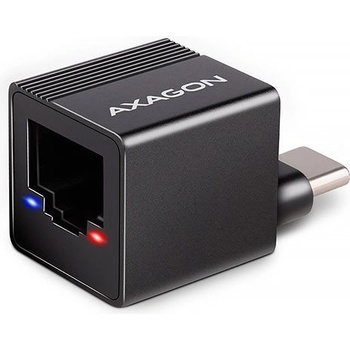

Miniatur aluminum USB-C 3.2 Gen 1 Gigabit Ethernet 10/100/1000 Mb/s adapter with automatic installation.

Input
USB 3.2 Gen 1

Output
Ethernet

rate
10/100/1000 Mbit/s

PC connection
USB type C-M

Theexternal network card AXAGON ADE-MINIC easily converts USB-C 3.2 Gen 1port to Gigabit Ethernet port. USB network adapter compatible with10/100/1000 Mbit/s expands the computer with a fast and stable networkconnection, adds the missing RJ-45 network connector, adds anothernetwork card, or replaces the original non-functional networkconnection.
Inaddition to gigabit throughput, the LAN adapter offers a wide range offeatures e. g. IPv4/IPv6 checksum to reduce CPU load by checksums, thecrossover detection and auto-correction, TCP large send offload, supportfor the work with VLAN and advanced Power Management features.
Themetal adapter cover is made of aluminum and provides perfect mechanicalprotection and excellent heat dissipation. Due to its minimaldimensions and weight, it is an ideal accessory for laptops and othermobile devices. The support for current versions of Windows, macOS, andLinux, Chrome operating systems allows it to be used for any desktop, laptop or ultrabook equipped with a modern double-sided USB Type Cconnector. In Windows from version 8.1 and above, the adapter enableseasy automatic installation without the need for an Internetconnection.
TheEthernet adapter will also be used by users of tablets or mobile phonessupporting the possibility of a wired Ethernet connection.
Input:
USB 5Gbps (USB 3.2 Gen 1 / USB 3.0).
Backward compatible with USB 480Mbps (USB 2.0) and USB 1.1.
Compatible with Thunderbolt 3 and 4.
Connection to a computer, phone or tablet via USB type C male connector.
Output:
Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
10/100/1000 Mb/s auto-detection.
Supports IPv4 / IPv6 packet Checksum Offload Engine (COE) to reduceprocessor load, including IPv4IP/TCP/UDP/ICMP/ IGMP & IPv6TCP/UDP/ICMPv6 checksum control and generation.
Supports TCP Large Send Offload V1 and V2.
Supports IEEE 802.1P Layer 2 priority encoding & decoding.
Supports IEEE 802.1Q VLAN tagging.
Supports IEEE 802.3az EEE (Energy Efficient Ethernet) - reduce power consumption at rest.
Supports Jumbo frame.
Supports full-duplex transmissions with IEEE 802.3x flow control andhalf-duplex transmissions with back-pressure flow control.
Supports Auto MDI/MDIX - crossover detection and auto-correction eliminates the need for crossover cables.
Supports hardware Cyclic Redundancy Check (CRC) to detect transmission errors.
Supports Pair Swap/Polarity/Skew Correction.
Other features:
Full Plug and Play and Hot Plug support.
Supports CDC-ECM – for automatic installation of drivers across different OSs.
Adapter power supply via USB (bus power) - no auxiliary power supply required.
Two LEDs to indicate network activity and gigabit speed.
Asymmetrically placed USB-C connector to avoid blocking the adjacent laptop port.
Dimensions 34 x 19 x 19 mm.
Weight 9 g.
The Realtek RTL8153 chipset is used.
Advanced Power Management features:
The adapter supports advanced power management to reduce losses duringstandby or light traffic on the network. It further supports advancedpower saving when the Ethernet cable has been disconnected.
Supports Advanced Configuration Power Management Interface (ACPI).
Supports Power Management offload (ARP & NS).
Supports Microsoft Always On Always Connected (AOAC).
Supports Intel Converged Platform Power Management (CPPM).
Supports Link Power Management (LPM).
Supports Operating System-directed Power Management (OSPM).
Supports IEEE 802.3az EEE (Energy Efficient Ethernet).
Supported operating systems:
Windows, macOS, Linux, Chrome OS and Android (WARNING - check with theAndroid device manufacturer if the Ethernet connection is supported).
Package contains:
USB-C / Gigabit Ethernet adapter
multilingual manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR /HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA
packed in a cardboard box with a hanging hole

interface
USB 3.2 Gen1 / USB 3.0 / USB 2.0 / USB 1.1

rate
5000 / 480 / 12 / 1.5 Mbit/s (super / high / full / low speed)

connector
USB type C male

Output

interface
Ethernet

rate
10/100/1000 Mbit/s

connector
RJ-45

compatibility
IEEE 802.3ab 1000Base-T

compatibility
IEEE 802.3u 100Base-TX

compatibility
IEEE 802.3 10Base-T

Supported features

bandwidth management
ano (IEEE 802.1P Layer 2 priority encoding & decoding)

Virtual LAN
yes (IEEE 802.1Q VLAN tagging)

Plug and Play
yes

Hot Plug
yes

Other features

indication
modrá LED - připojení k síti

indication
červená LED - přenos dat (bliká)

chipset
Realtek RTL8153

dimensions
34 x 19 x 19 mm

weight
9 g

Power supply

on the bus
yes (USB bus power)

OS support

MS Windows
10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions)

Mac OS
X 10.6 and higher

Linux
kernel 2.6. 14 and higher

Android
all versions ( ! - verify support at the Android device manufacturer)
