AXAGON USB3 to SATA adapter, AXAGON ADSA-FP2A (ADSA-FP2A)

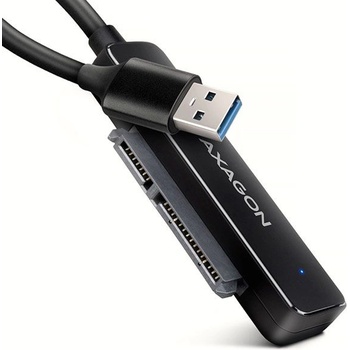

ADSA-FP2A USB-A 5Gbps SLIM adapter for 2.5" SSD/HDD
USB-A 5Gbps adapter for fast connection of 2.5" SATA SSD/HDD

Input
USB 3.2 Gen 1

Output
SATA, SATA 6G, UASP

PC connection
permanently connected cable, cable 20 cm

Device support
2.5" HDD / SSD

design
miniature

Extra
TRIM

CompactAXAGON ADSA-FP2A SLIM adapter with USB-A 5Gbps and SATA 6G interfacefor 2.5" SATA hard drives or SSDs. The connection to the computerenables a permanently attached USB-A cable 20 cm long. Thanks to the USB3.2 Gen 1 interface, the transfer rate is up to 5 Gb/s, and the Plug& Play function ensures automatic connection to the computer.
Theadapter also supports all important functions for working seamlesslywith different types of drives. Such as UASP for faster data transfer, TRIM for limiting the gradual degradation of SSD performance over time, S. M. A. R. T. for monitoring the status of the drives, BOOT for the abilityto boot from drives connected to the adapter, Auto Spindown toautomatically put drives to sleep during prolonged inactivity, Turn Offto shut down the drives after removing the device or putting the PC tosleep, and USB Bus Power to power the adapter including connected drivesonly from the USB port.
Theslim and compact adapter enables easy and quick disc replacementwithout the need for assembly, and at the same time, thanks to itsminimal dimensions, it can be readily at hand at any time. The mattedesign of the cover prevents unwanted fingerprints.
Thesefeatures make the adapter a very handy and useful tool for frequentwork with different types of drives. This makes it an ideal tool forbackup, migration, data transfer, storage and recovery, discs testing, etc.
Input:
USB-A 5Gbps (USB 3.2 Gen 1 / USB 3.0).
Speed up to 5 Gbit/s.
Connection via USB type A male connector.
Device support:
  SATA III - 6Gb/s (600 MB/s) interface,
Supports 2.5" SSD/HDD,
max. disk capacity - all without limit.
Other features:
Compatible with USB 5Gbps (USB 3.2 Gen 1 / USB 3.0).
Backward compatible with USB 480Mbps (USB 2.0).
Supports transmission rates 5.000 / 480 Mbit/s.
Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s).
Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
The total bandwidth / transmission rate of the adapter is determined by the USB interface (theor. 5 Gbit/s).
Supports BOT (Bulk-Only Transport).
Supports UASP (USB Attached SCSI Protocol).
Supports TRIM functionality to limit gradual degradation of the SSD performance over time.
Supports S. M. A. R. T. (Self-Monitoring, Analysis, and Reporting Technology) system monitoring disk condition.
Supports booting from SSD/HDD connected via an USB adapter.
HDD Auto Spindown - automatic spindown of a disk after period of inactivity lasting 10 minutes.
HDD Turn Off - turns off the disk after removing the device or spinning down the PC.
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Connection via USB-C male connector on 20 cm long cable permanently connected to the adapter.
Supplying the power via bus up to 900mA from one USB port is sufficient in all cases.
Decently bright LED indicating the connection of USB power supply (permanent light) and data transmission (blinking).
Adapter dimensions 70 x 26 x 10 mm.
Adapter weight only 20 g incl. USB cable.
Supported OS:
Windows 7 / 8.1 / 10 / 11 a and later,
Windows Server 2008 R2 / 2012 R2 / 2016 / 2019 / 2022 and later,
Mac OS X 10. x and higher,
Linux with kernel 2.6. x and higher.
Package contains:
USB-A - SATA adapter with permanently connected 20 cm long cable,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU /IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.

interface
USB 5Gbps (USB 3.2 Gen 1 / USB 3.0)

rate
5 Gbit/s

connector
USB-A male / on the cable

cable
20 cm, permanently connected

Output

interface
SATA III

rate
6 Gb/s (600 MB/s)

compatibility
all SATA I / SATA II / SATA III disks

total permeability
5 Gbit/s teor. (determined by the USB 3.2 Gen 1 input)

Supported device

2.5"
yes (SATA HDD/SSD)

3.5"
no

5.25"
no

max. disk capacity
all, without limitations

Supported features

UASP
yes

TRIM
yes

S. M. A. R. T.
yes

boot from connected disk
yes

putting disk to sleep
yes

disk turning off
yes

Plug and Play
yes

Hot Plug
yes

Other features

screwless mounting
yes

indication
LED indicating - connection to the computer's USB port (permanent light), data transmission (flashes)

dimensions
70 x 26 x 10 mm

weight
20 g

Power supply

on the bus
yes (USB bus power)

through power adapter
no

OS support

MS Windows
11 / 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions)

MS Windows Server
2022 / 2019 / 2016 / 2012 / 2008 (all 32- and 64-bit versions)

Mac OS
X 10. x and higher

Linux
kernel 2.6. x and higher
