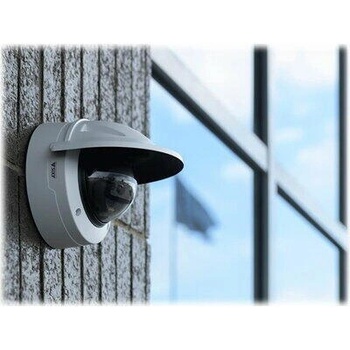

Axis Communications M3216-LVE (02372-001)

AXIS M3216-LVE
id="p46359436"> AXIS M3216-LVEManufacturer AXIS COMMUNICATIONSManufacturer Part No 02372-001Marketing DescriptionAXIS M3216-LVE delivers great image quality under any light conditions. It includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics it offers detection and classification of humans and vehicles, all tailored to your specific needs. Product Features

• Great image quality
• Analytics with deep learning
• Audio and I/O connectivity
• Built-in cyber security features

GeneralDevice TypeNetwork surveillance cameraAudio SupportYes: built-in microphone, two-way audio via edge-to-edge technologyAudio FormatsAAC, LPCM, G. 711, OPUSForm FactorDomeConnectivity TechnologyWiredWidth14.9 cmDepth14.9 cmHeight10.2 cmWeight791 gLocalisationChinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Polish, Russian, Spanish, Japanese, KoreanCameraTypeColour - Day&Night - fixed - outdoor - vandal / waterproofDigital Video FormatMJPEG, H. 264, H. 265, MPEG-4 Part 10, MPEG-H Part 2Max Digital Video Resolution2688 x 1512Motion DetectionYesExposure Range1/5 sec - 1/50000 secMinimum Illumination0.16 lux - colour - F2.0 - 50 IRE
0 lux - B&W - F2.0 - 50 IRE - infrared LEDs onInfrared Distance30 mDigital Video Capture Resolution160 x 120, 2304 x 1728, 2688 x 1512, 160 x 90Frame Rate (max)60 frames per secondRAM1024 MBFlash Memory8192 MBFeaturesSharpness control, white balance, saturation control, brightness control, sunshield, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), digital PTZ function, password protection, Variable Bitrate (VBR), Zipstream technology, Access Control, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, plastic housing, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, exposure zone, HTTPs encryption, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), defogging, compression, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, user access log, centralised certificate management, brute force delay protection, day shift, night shift, ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, deep learning processing unit (DLPU), dynamic text overlay, VoIP support, tone mapping, exposure mode, barrel distortion correction, network speaker pairingImage SensorType4 MP PS RGB CMOS 1/2.7"Lens ConstructionTypeFixed focalFocal Length2.9 mmLens IrisF/2.0 fixed irisHorizontal Field of View (degree)102Vertical Field of View (degree)73PanningRange (degree)-190 to +190TiltingRange (degree)-10 to +80InterfacesNetwork InterfaceEthernet 10Base-T/100Base-TXNetwork ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, SIP, LLDP, Zeroconf, USGv6, MQTT, CDP, SyslogAlarm Inputs Qty1Alarm Outputs Qty1Expansion / ConnectivityPortsLAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Digital input/output - terminal blockSupported Memory CardsmicroSD Card, microSDHC Card, microSDXC CardMiscellaneousIncluded AccessoriesCable gaskets, drill hole template, weathershield, connector guard, Resitorx TR20 screw bit, terminal block connectorsCompliant StandardsEN 61000-6-1, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, RCM, IEC 62471, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEEE 802.3af, IEEE 802.3at, KCC KN35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, NEMA TS-2 (2.2. 7-2.2. 9)ColourWhite, NCS S 1002-BPowerPower RequirementsDC 12 V / PoEPower Device4.8 WattSoftware / System RequirementsSoftware IncludedAXIS Camera Station, Windows decoder 1-user licence, AXIS CompanionManufacturer WarrantyService & SupportLimited warranty - 5 yearsEnvironmental ParametersMin Operating Temperature-40 °CMax Operating Temperature50 °CRelative Humidity (operating)5 - 95% RH (non-condensing) Technical data provided by third party. We assume no liability for errors within these data.
