Axis Communications Q1656-LE (02168-001)

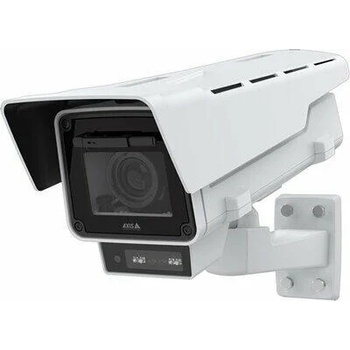

AXIS Q1656-LE
id="p46328679"> AXIS Q1656-LEManufacturer AXIS COMMUNICATIONSManufacturer Part No 02168-001Marketing DescriptionWith Q-line functionality and exceptional video quality even in poor light, AXIS Q1656-LE is based on the Axis system-on-chip (SoC) and offers support for powerful analytics based on deep learning on the edge. Product Features

• Excellent performance
  AXIS Q1656-LE delivers exceptional video quality even in poor light conditions. This Q-line camera offers impressive performance with 4 MP resolution at up to 60 fps. With a 1/1.8" sensor, it provides high image quality no matter what. Plus, a built-in wiper guarantees great images even in snow and rain. It includes Lightfinder 2.0 to capture outstanding forensic images in low light scenes. And, the built-in camera rails allow you to easily adjust or change the lens to a larger tele lens or i-CS lens. Furthermore, with selectable IR wavelength, you can choose between covert or semi-covert LED illumination.
• Powerful analytics capabilities
  This high-performance camera is based on ARTPEC-8, a modern Axis system-on-chip (SoC). Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before - on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles - all tailored to your specific needs.
• Reliable and secure
  Designed for easy and reliable installation, AXIS Q1656-LE is enclosed in a robust, impact-resistant IK10-rated casing. With IP66, IP67, NEMA 4X, and NEMA TS2 ratings, this water-resistant, weatherproof camera can also withstand winds up to 60 m/s. Including remote zoom and focus and support for PoE and redundant DC power, it offers flexible installation and maintenance. Plus, your data is safeguarded in the event of a power outage. It also includes surge protection and an intrusion switch for secure operation. Furthermore, built-in cybersecurity features prevent unauthorized access and safeguard your system.

GeneralDevice TypeNetwork surveillance cameraAudio SupportYes: two-way audio capabilityAudio FormatsPCM, G. 726, ADPCM, AAC-LC, LPCM, G. 711, OPUSForm FactorBoxCamera Mount TypeWall mountConnectivity TechnologyWiredWidth15.9 cmDepth40.4 cmHeight18.2 cmWeight4.4 kgCameraTypeColour - Day&Night - fixed - outdoor - weatherproofDigital Video FormatMJPEG, HEVC, H. 265, MPEG-4 AVC, H. 264B, H. 264H, H. 264M, MPEG-4 Part 10, MPEG-H Part 2Max Digital Video Resolution2688 x 1512Motion DetectionYesExposure Range1 sec - 1/47500 secMinimum Illumination0.05 lux - colour - F1.5 - 50 IRE
0.01 lux - B&W - F1.5 - 50 IRE
0 lux - IRInfrared LEDsYesInfrared Distance50 mVideo Capture2688 x 1512 @ 60 fpsRAM2 GBFlash Memory8 GBFeaturesWhite balance, saturation control, brightness control, contrast control, image mirror, heater, window wiper, multi-streaming, notification picture to E-mail, digital PTZ function, notification picture to FTP, password protection, distortion correction function, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Defog, Zipstream technology, Pelco Protocol, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, Pixel Counter Support, infrared-cut filter, Line Crossing Detection, Vehicle Detection, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, human detection, Remote Back Focus, signed firmware, secure boot, TPM 2.0 module, Audio Noise Reduction, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, brute force delay protection, ONVIF (Profile M) supportImage SensorType4 MP PS CMOS 1/1.8"Lens ConstructionTypeCS-mount - motorized zoomOptical Zoom2.5 xFocal Length3.9 mm - 10 mmLens Iris(P-Iris)Focus AdjustmentAutomaticMin Focus Distance50 cmHorizontal Field of View (degree)47 - 113Vertical Field of View (degree)27 - 60InterfacesNetwork InterfaceEthernet 10Base-T/100Base-TX/1000Base-TNetwork ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTTControl InterfaceRS-485, RS-422Expansion / ConnectivityPortsLAN/power - RJ-45
Audio line out - 3.5 mm jack
Audio line-in/microphone - 3.5 mm jack
Serial RS-485/RS-422 - terminal blockSupported Memory CardsSD Memory Card, SDXC Memory Card, SDHC Memory CardMiscellaneousIncluded AccessoriesWall mount kit, sunshield, Resistorx T20 tool, connector kitCompliant StandardsCISPR 24, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, IEC 62471, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEC/EN/UL 60950-22, ISO 21207 method B, IEEE 802.3af, IEEE 802.3at, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, CAN ICES-3(B)/NMB3(B), IEC/EN 62262 IK10, IEC/EN 60529 IP67, IK08, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547ColourWhitePowerPower RequirementsDC 10 - 28 V / PoE Plus Class 4Software / System RequirementsSoftware IncludedWindows decoder 1-user licenceManufacturer WarrantyService & SupportLimited warranty - 5 yearsEnvironmental ParametersMin Operating Temperature-40 °CMax Operating Temperature60 °CRelative Humidity (operating)10 - 100% RH (condensing) Technical data provided by third party. We assume no liability for errors within these data.
AXIS



.
