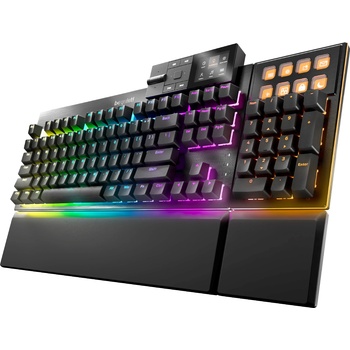

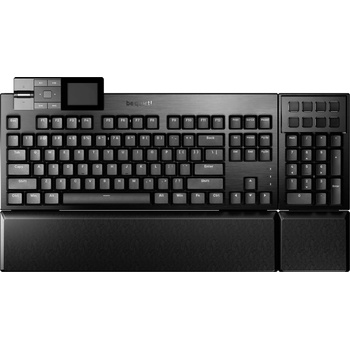

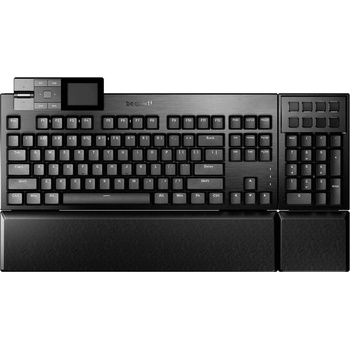

be quiet! Dark Mount Silent BT002US

be quiet! Dark Mount Silent Tactile



MODULAR TO THE MAX

Hot-swappable Numpad and Media Dock

For maximum comfort and customization, the Dark Mount Numpad can be attached to either the left or right side of the keyboard – or left off entirely when space is at a premium, for example at a LAN party. A Media Dock with dedicated media keys and a display always gives you full control over your video and audio settings and can be mounted in 2 positions, either on the left or right. Even the Palm Rest is split and the segment under the Numpad can also be attached on either side.

YOUR SKILL ON DISPLAY

8 customizable Display Keys

You can fully customize 8 dedicated 140x140 Display Keys. Start your favorite game, go live with your stream, or bind custom macros to the keys and take advantage of the preconfigured icon library or upload your own image. With support for animated GIFs, JPGs, PNGs, and other common image formats, Dark Mount perfectly matches your favorite loadout.

MECHANICAL BE QUIET! SILENT SWITCHES

With factory-lubrication

Each keystroke is snappy and precise, yet whisper-quiet. Our silent tactile black switches are pre-lubricated to reduce friction and noise.  After careful consideration and testing different materials, we chose a PA66 nylon housing for a muted sound profile and a POM stem for smooth actuations with snappy tactility, to provide the best possible typing experience. We even went the extra mile to lubricate the stabilizers that sit under every large key like Space and Enter, which can often make an unpleasant rattling noise if not treated properly, and cushioned the contact point between stabilizer and PCB for extra sound-dampening. Fans of customization will appreciate that each switch is hot-swappable with other 5-pin MX style switches.

RULE OF 3

Triple-layered dampening

A total of 3 sound-absorbing layers ensure that Dark Mount lives up to the name of be quiet!. One layer of foam is between the switches and the PCB, another is under the PCB, and silicone padding is filling the bottom housing. Any potential echoing noises are immediately muted. The space bar received a bonus layer of dampening, with foam inside the keycap body to reduce echo effects.

STRIKING LIGHTING

Per-key glow effect

Dark Mount’s customization options are maximized with per-key ARGB lighting. Highlight important keys or create stunning effects. The translucent legends of the double-shot keycaps shine brilliantly thanks to an arched diffuser in each switch. A lightbar surrounding the keyboard creates atmospheric ARGB LED lighting on your desk that goes along with any RGB gaming PC, perfectly in line with your personal style.



Keys to excellence

The Dark Mount modular keyboard delivers an uncompromising set of features, like 8 Displays Keys and a Media Dock.

• Unparalleled modularity with hot-swappable Numpad and Media Dock
• 8 customizable Display Keys
• Factory-lubricated mechanical be quiet! Silent Switches offer speed, precision, and accuracy with a clearly noticable tactile actuation point
• 3 layers of sound-proofing with silicone and foam for extra silent keystrokes
• High-quality PBT double-shot keycaps with translucent legends that will never fade or wear off
• Per-key illumination and customizable ARGB lighting around the edges for atmospheric effects
• Support for hot-swappable 5-pin MX-style switches
• Customize your Dark Mount with the be quiet! IO Center software



Technical data



General data

Model Dark Mount Silent Tactile US ANSIDimensions (L x W x H), (mm) 256 x 456 x 52Dimensions without palmrest (L x W x H), (mm) 174 x 456 x 52Color option BlackTotal weight (kg) 1.59Weight without palmrest (kg) 1.38Switch type be quiet! Silent Tactile mechanical switchesSwitch socket 5-pin, Cherry MX formfactorBacklight RGBLayout US layout, ANSIMaterials Aluminum top-plate, ABS bottom, PBT keycaps



Key specifications

Key rollover Full NKRO via USBKeycaps be quiet! PBT double-shotStabilizer Genuine Cherry, screwed-in & lubedOn-the-fly system Yes, via FN-keyPolling rate (Hz) 1000



Hardware, Software

Connector USB 2.0Interface USBOnboard memory YesMCU Cortex M0Software support Yes , be quiet! IO Center & IO Center Web



Safety certifications

Approvals CE, FCC, REACH, UKCA



Environmental directives

RoHS YesWEEE YesTriman Yes
